WATER DAMAGE
Structural Drying
RESIDENTIAL
CATEGORY 1
Hidden Water Damage Fairfield, OH
A finished residential unit in Fairfield, OH sustained significant concealed water damage — with moisture readings maxing out the meter (999) across hallway walls and baseboards, and critical readings detected in the laundry room, utility space, and LVP flooring throughout. What appeared as a localized laundry area issue had silently spread into every adjacent wall and floor cavity.
LOCATION
Fairfield, OH
Total Affected Area
~470 sq ft
CAUSE OF LOSS
Supply Line / Appliance Leak
RESPONSE TIME
Within 59 Minutes
PROJECT OVERVIEW
WHAT HAPPENED

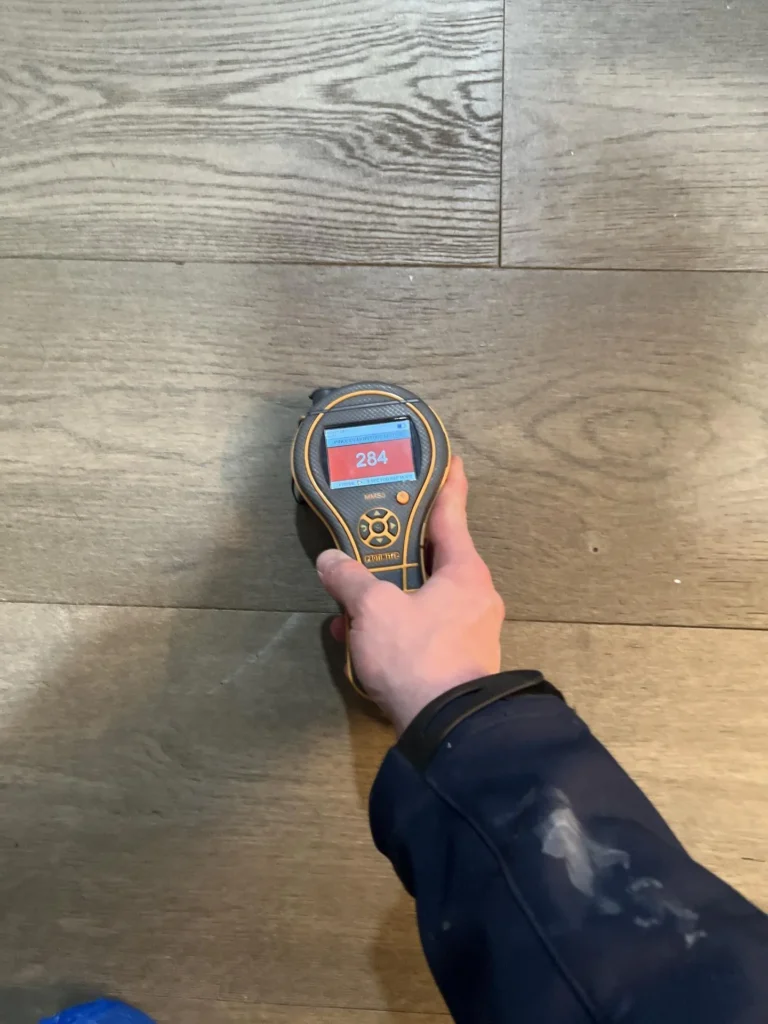

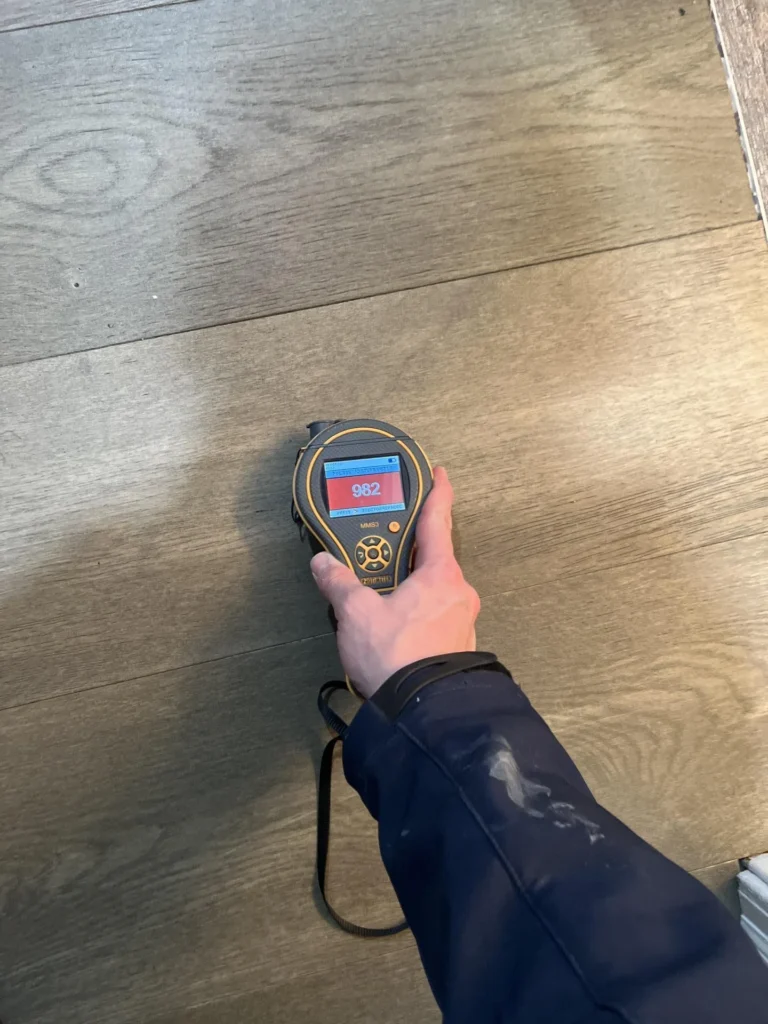

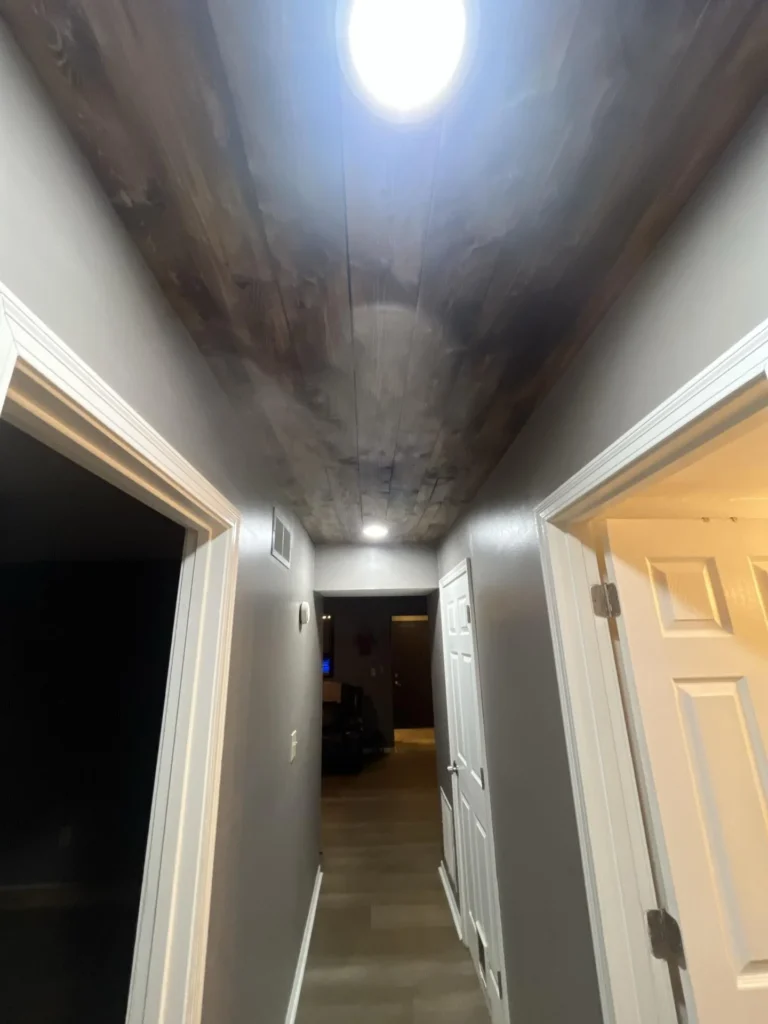

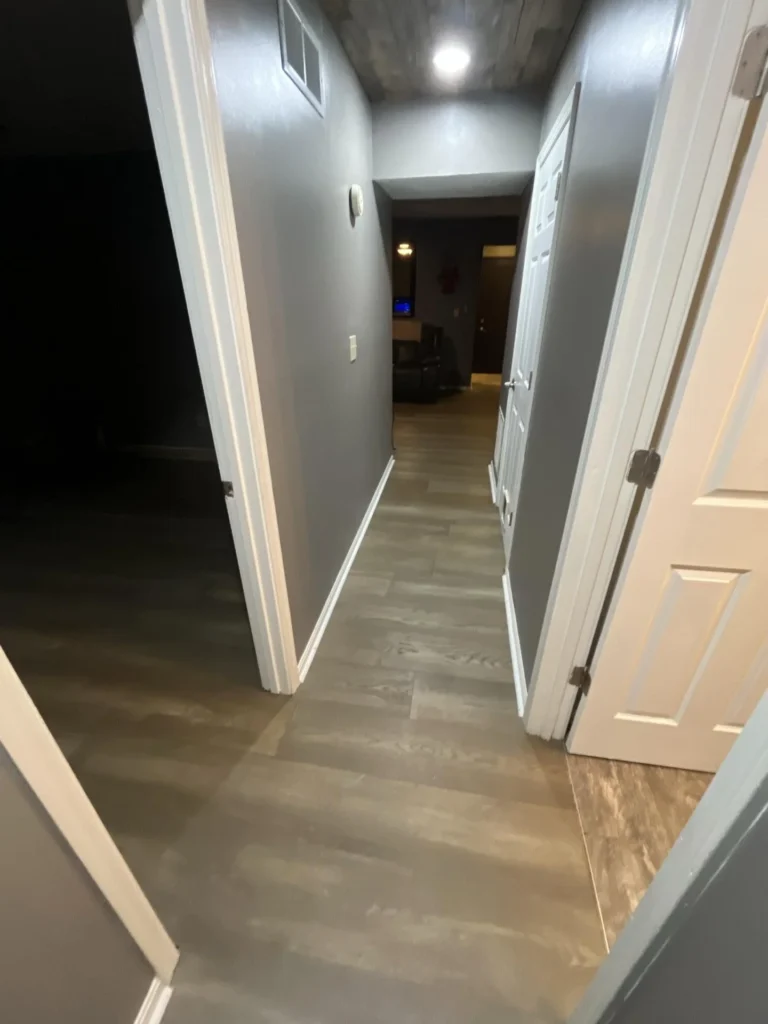

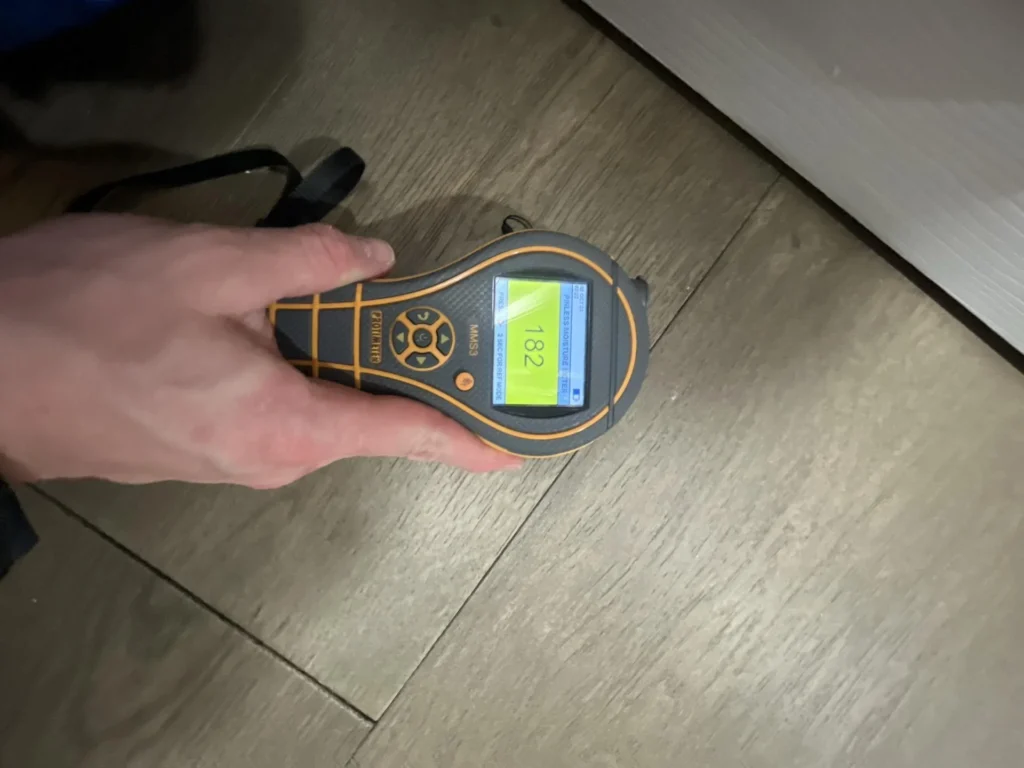

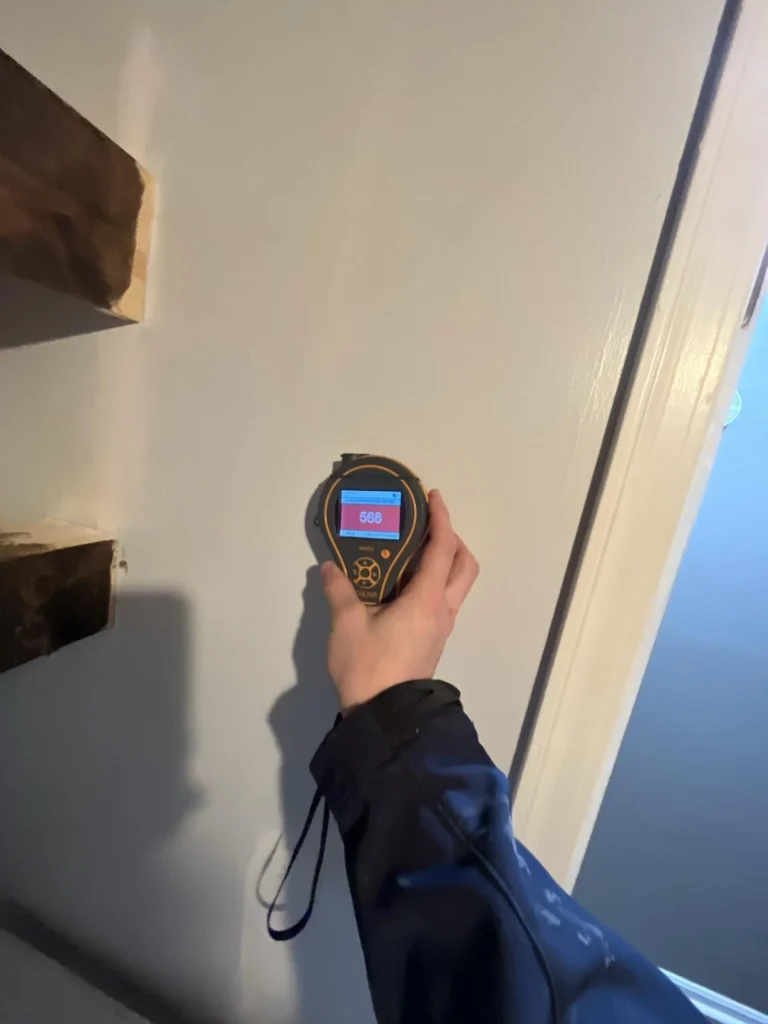

A water supply line failure in the laundry/utility room of this Fairfield, OH home allowed water to migrate undetected through the finished flooring and into the surrounding wall cavities — by the time H2O Restoration arrived on-site, pinless moisture meter readings were maxed out at 999 along the hallway walls and baseboards, with additional critical readings of 982 and 568 detected at the floor-wall transition and laundry room walls; the LVP flooring throughout the hallway showed widespread saturation (284+), the wood-plank ceiling of the laundry room had dark moisture staining visible across multiple boards, and the appliances had already been wrapped in plastic sheeting in an attempt to protect them, indicating the loss had been ongoing before it was reported.

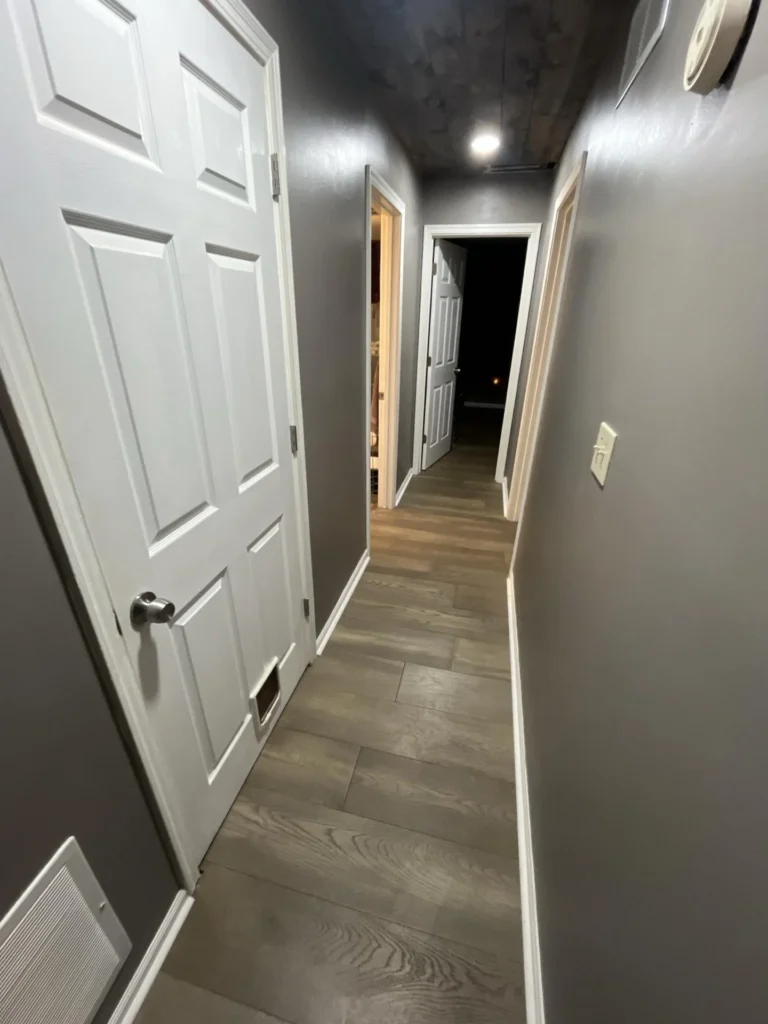

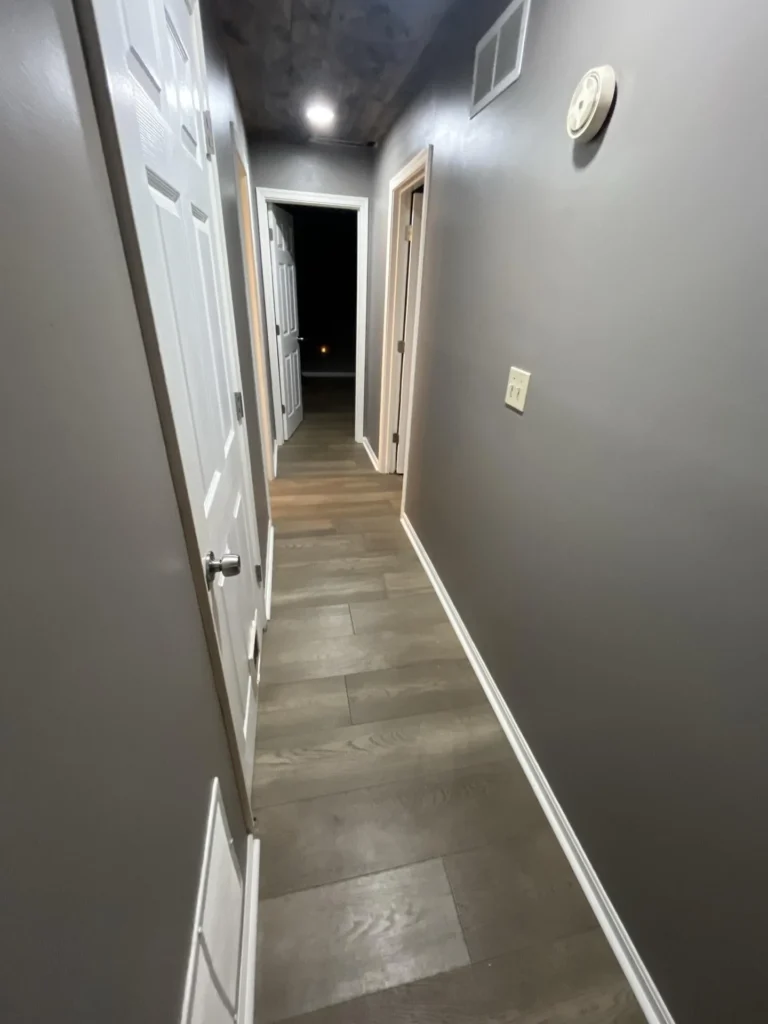

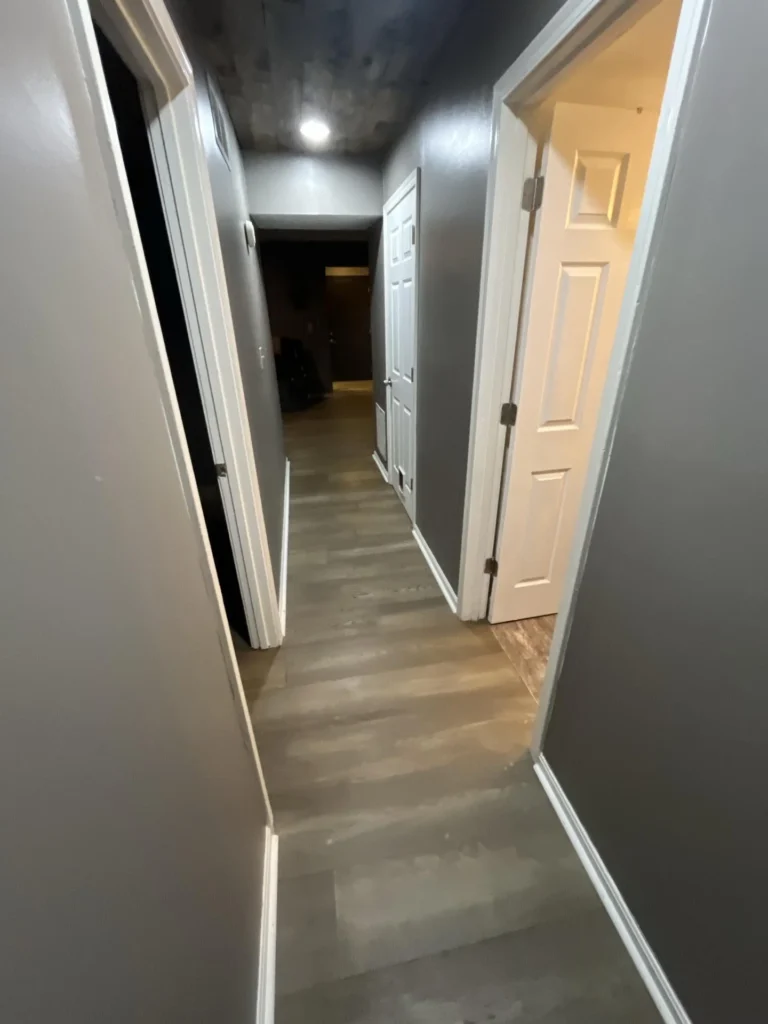

Moisture had traveled laterally from the utility/laundry room into the hallway wall system and under the LVP flooring — readings at the wall base hit the meter maximum of 999 at multiple points. The visible damage represented only a fraction of the actual affected area, which extended well beyond the laundry room into all adjoining spaces.
JOB DETAILS
- Cause of loss
- Water Category
- Flooring Type
- Ceiling Affected
- Contents Protected
- Insurance support
Affected Spaces — From Floor Plan
- Utility Room
- Hall (1st Floor)
- Laundry / Utility Ceiling
- Hallway Walls
- LVP Subfloor
- Total Affected
EQUIPMENT DEPLOYED
LGR dehumidifier
Compact air movers
Pinless moisture meters
Injectidry wall drying system
Floor mat drying system
Thermal imaging camera
Moisture mapping documentation
JOB SITE IMAGES
A CLOSER LOOK AT THE DAMAGE
Our process
Work completed
1
Emergency response & full moisture mapping

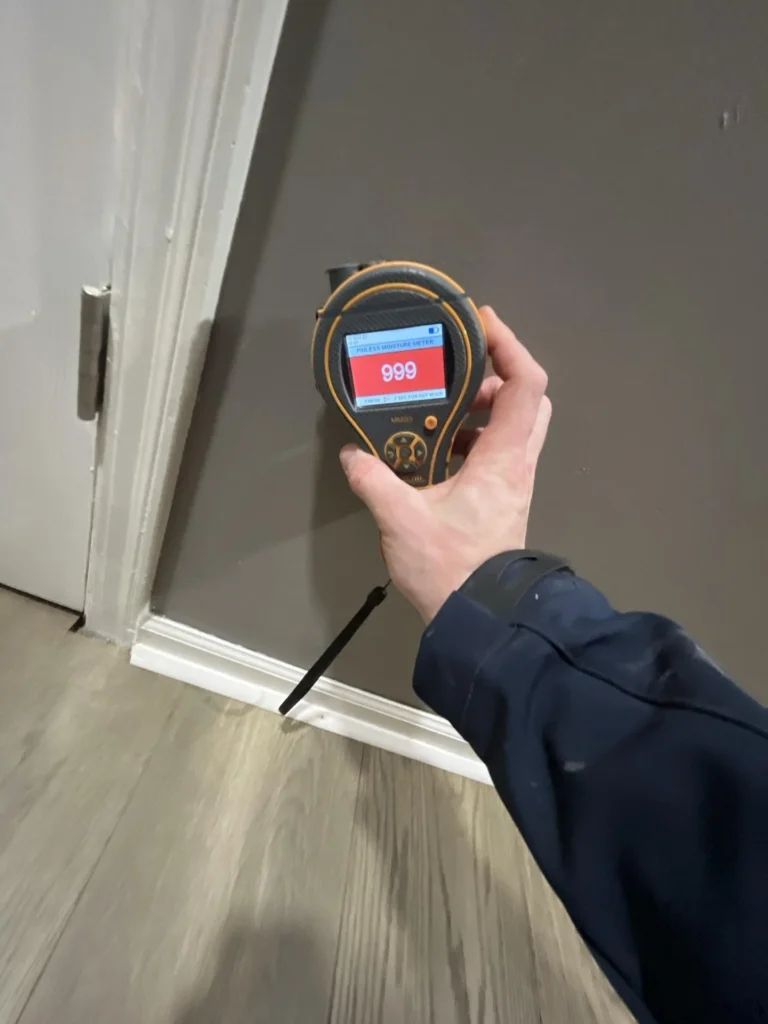

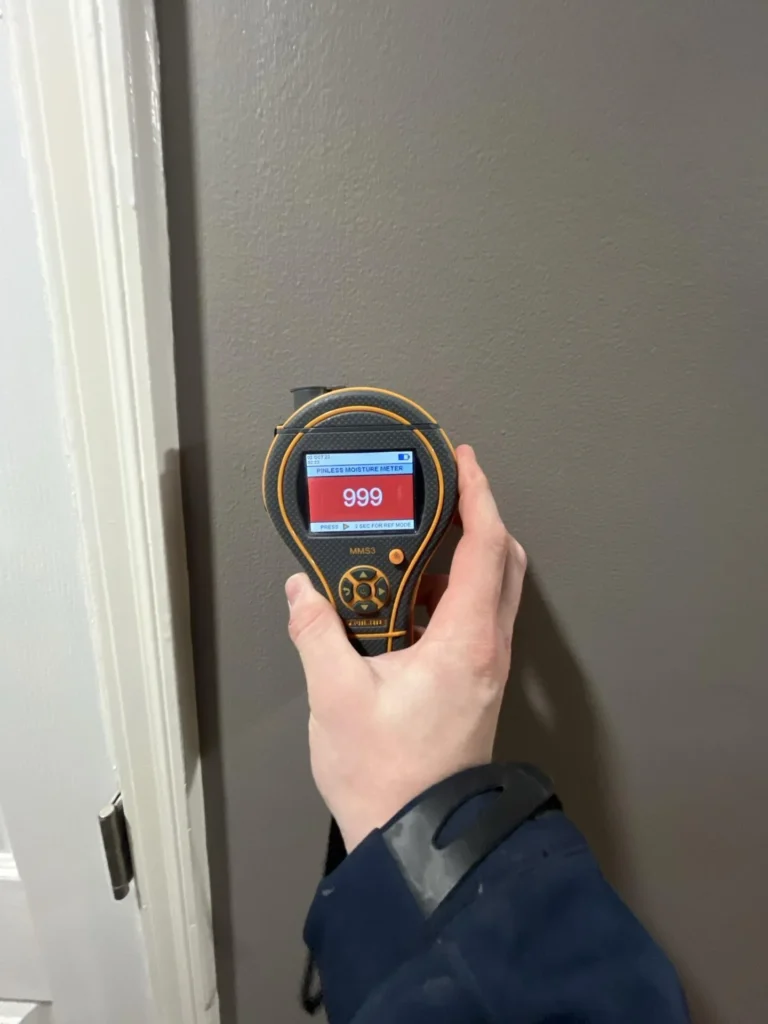

Crew arrived within 59 minutes and immediately began a room-by-room moisture survey using a pinless moisture meter. Readings in the hallway walls registered 999 — the maximum readable value — confirming full saturation behind the finished drywall. All affected surfaces were mapped and photographed for documentation before any drying equipment was placed.
2
Source identification & water extraction

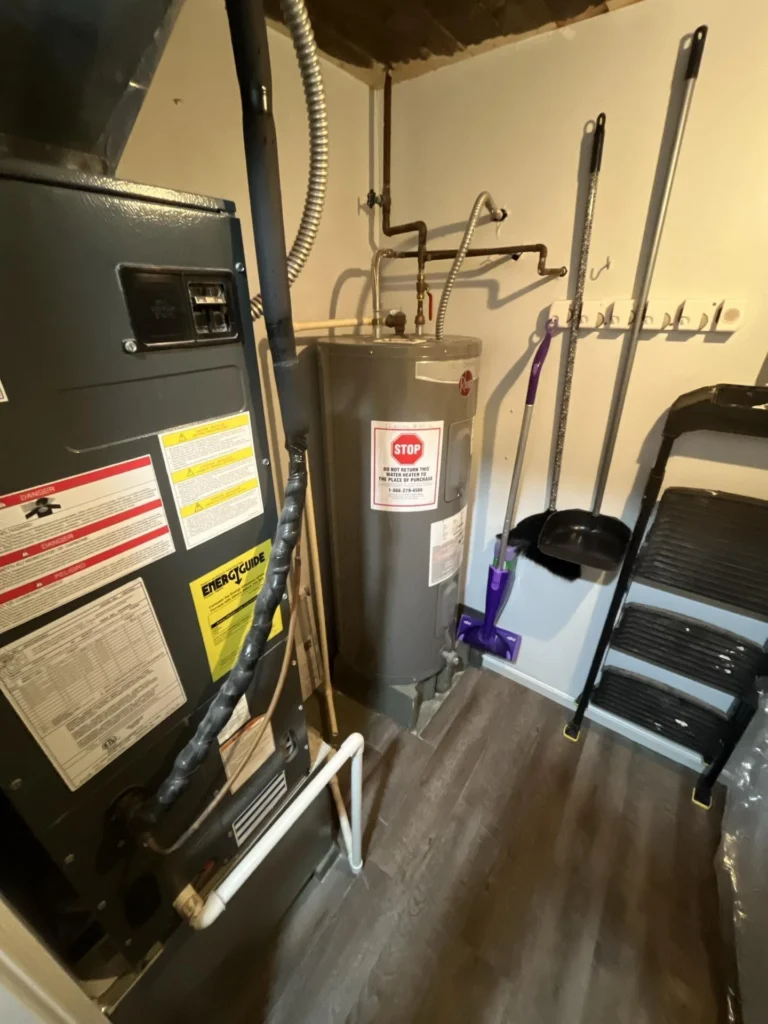

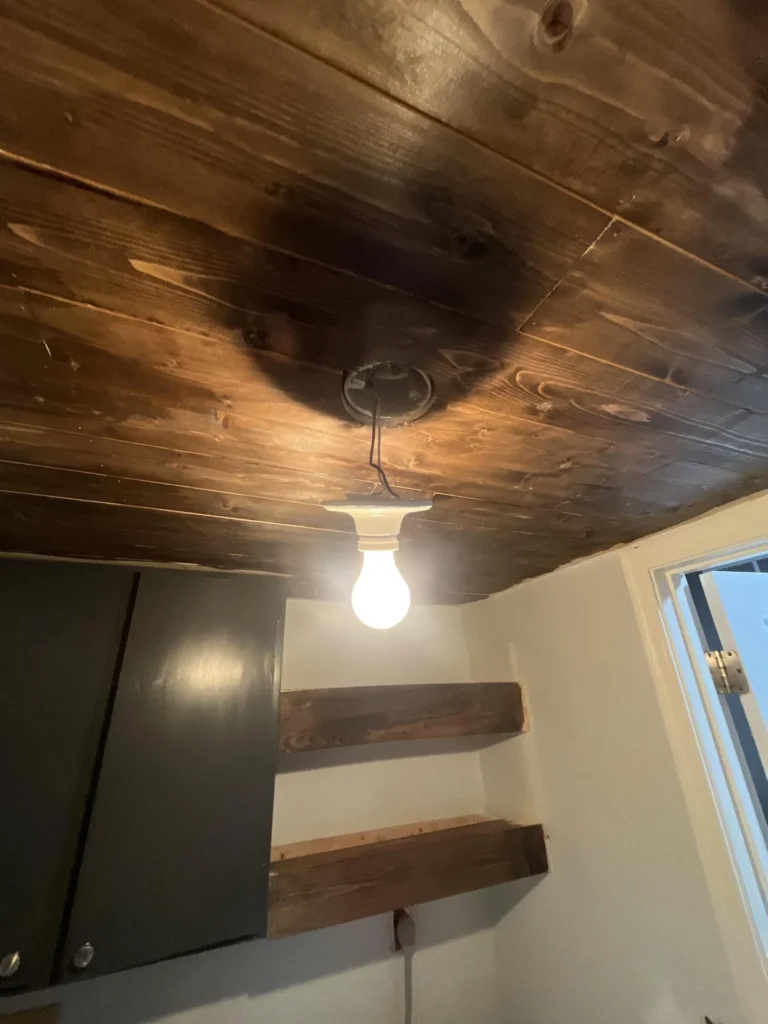

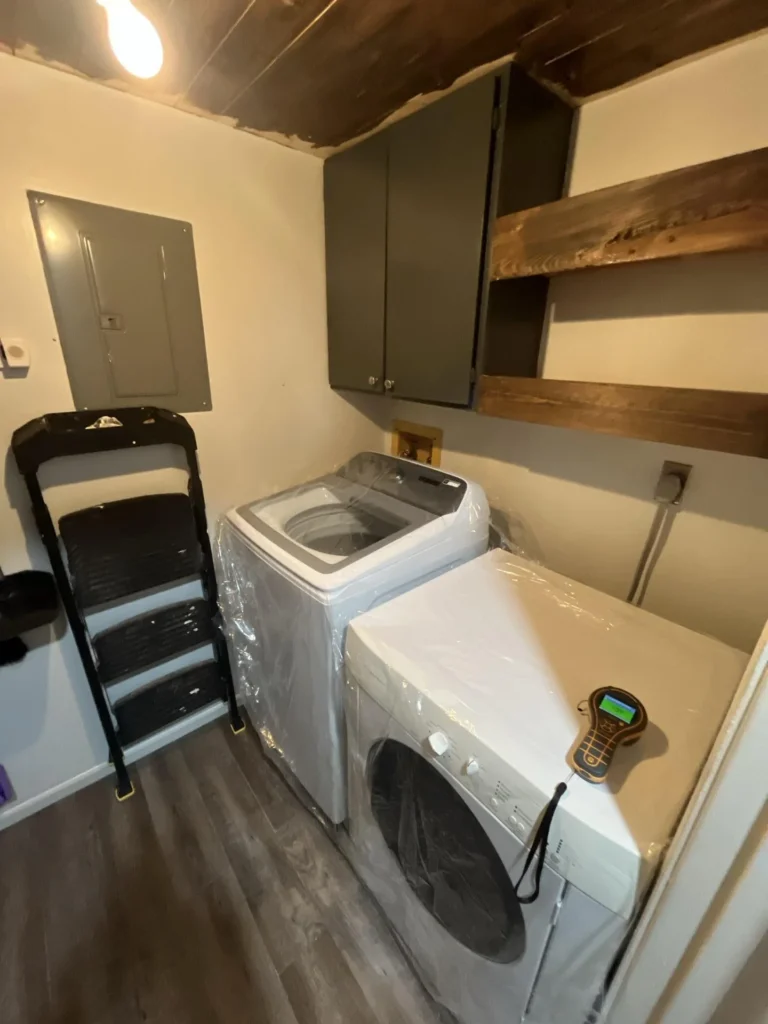

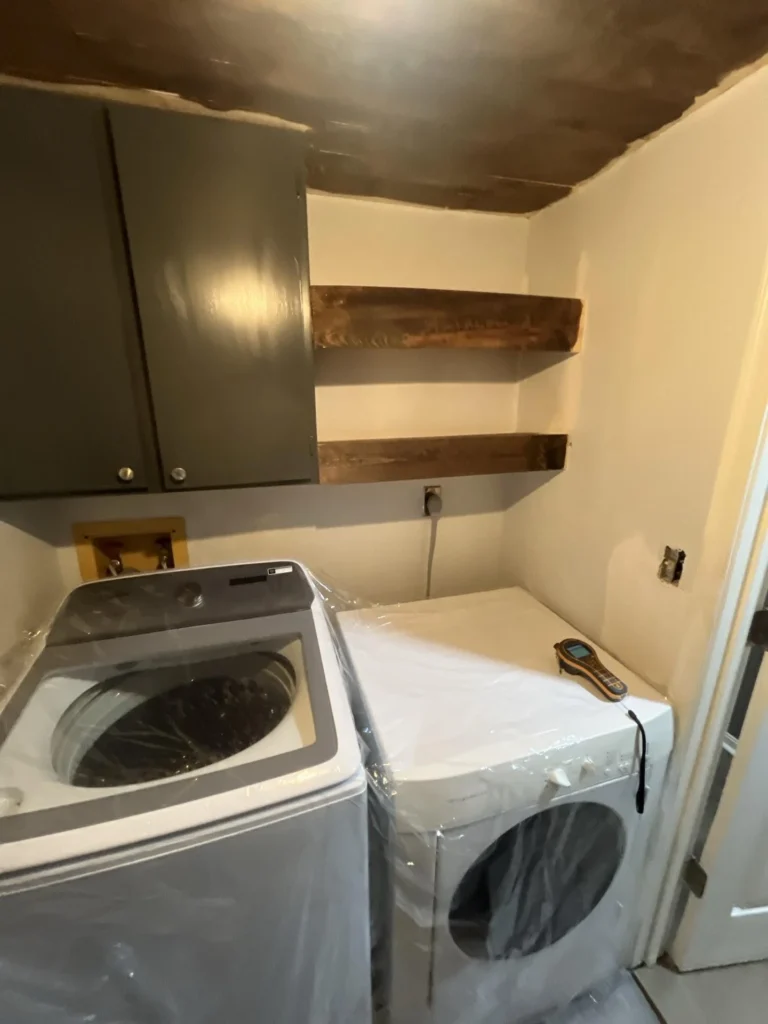

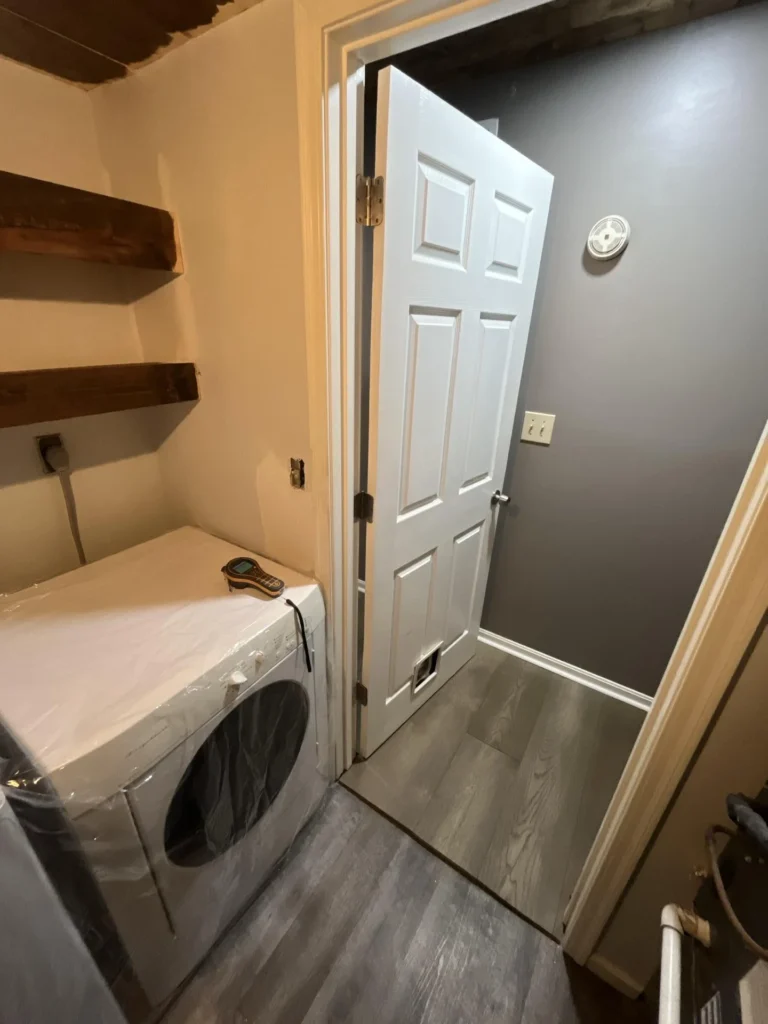

The source was traced to a supply line failure at the washer connection in the laundry/utility room. Standing water was extracted from the affected floor areas. Appliances were wrapped and protected in place to prevent secondary damage. The wood-plank ceiling in the laundry room was assessed for structural moisture and documented — staining confirmed active moisture intrusion into the ceiling assembly.
3
Structural drying — walls, floors & ceiling

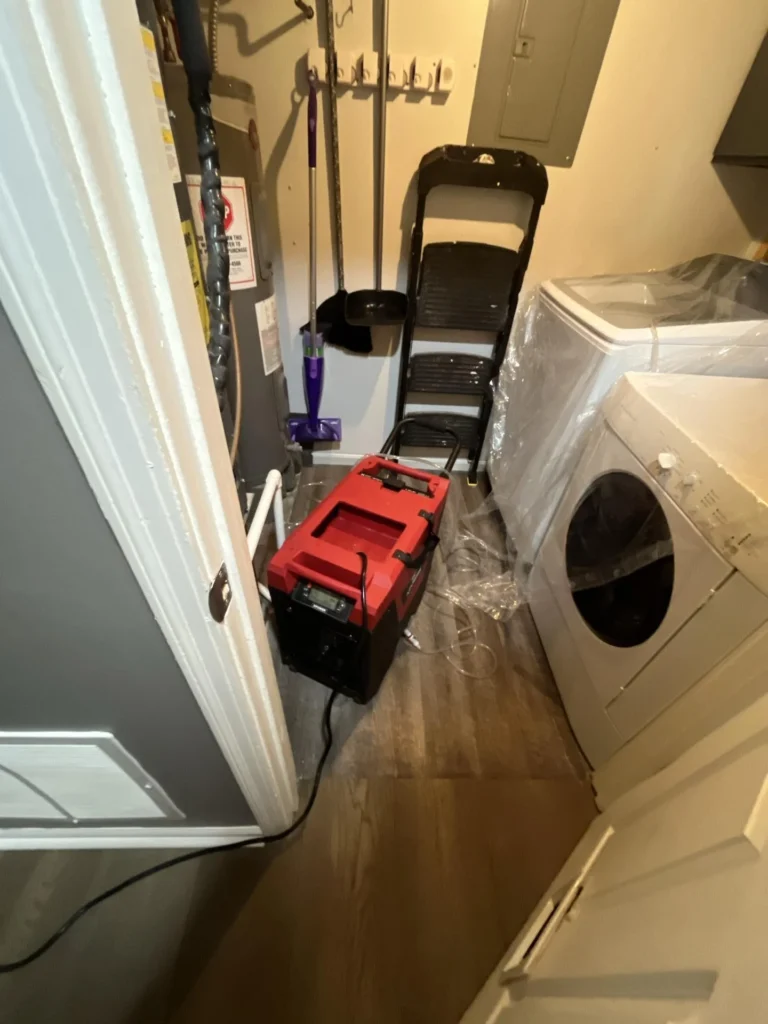

LGR dehumidifiers and high-velocity air movers were deployed throughout the utility room and hallway. An Injectidry wall drying system was installed to dry the wall cavities without requiring full drywall removal, preserving the finished surfaces where possible. Floor mat drying systems were placed over the saturated LVP runs to draw moisture from beneath the flooring.
4
Daily monitoring to dry standard

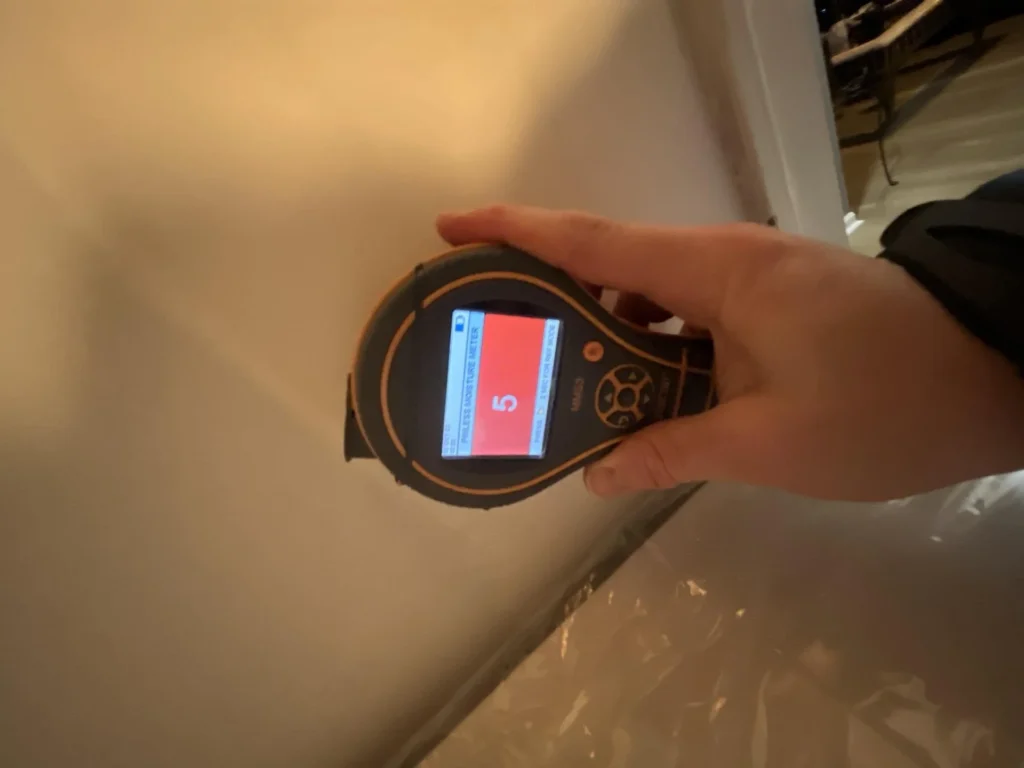

Moisture readings were logged at every monitoring point on a daily basis. The initial 999-level readings were tracked down progressively over the drying period. Final confirmed dry readings came in at 5 or below at all previous high-moisture locations — well within the IICRC S500 dry standard — before equipment was removed.
5
Full insurance documentation & scope submission
A complete moisture mapping report with before-and-after readings at all monitoring locations, photo documentation, and a detailed adjuster scope of work were submitted to the carrier. The scope captured the full extent of affected wall, floor, and ceiling systems — ensuring the claim reflected actual conditions rather than the initially visible damage only.
H2O Restoration handles both mitigation and full reconstruction — including drywall, flooring, and ceiling repair — so you work with one team from the first call through the final walkthrough.
