WATER DAMAGE
RESIDENTIAL
category 2

Kitchen sink leak Cincinnati OH

A slow leak beneath the kitchen sink at this Elkwood Drive, Cincinnati, OH home went undetected long enough to saturate the cabinet base and sub-floor — with standing water spreading across 452 sq ft of open-plan kitchen, dining area, and living room. H2O Restoration responded within 59 minutes.
LOCATION
Cincinnati, OH
Total affected area
452 sq ft
CAUSE OF LOSS
Supply line leak
RESPONSE TIME
Within 59 minutes
PROJECT OVERVIEW

WHAT HAPPENED

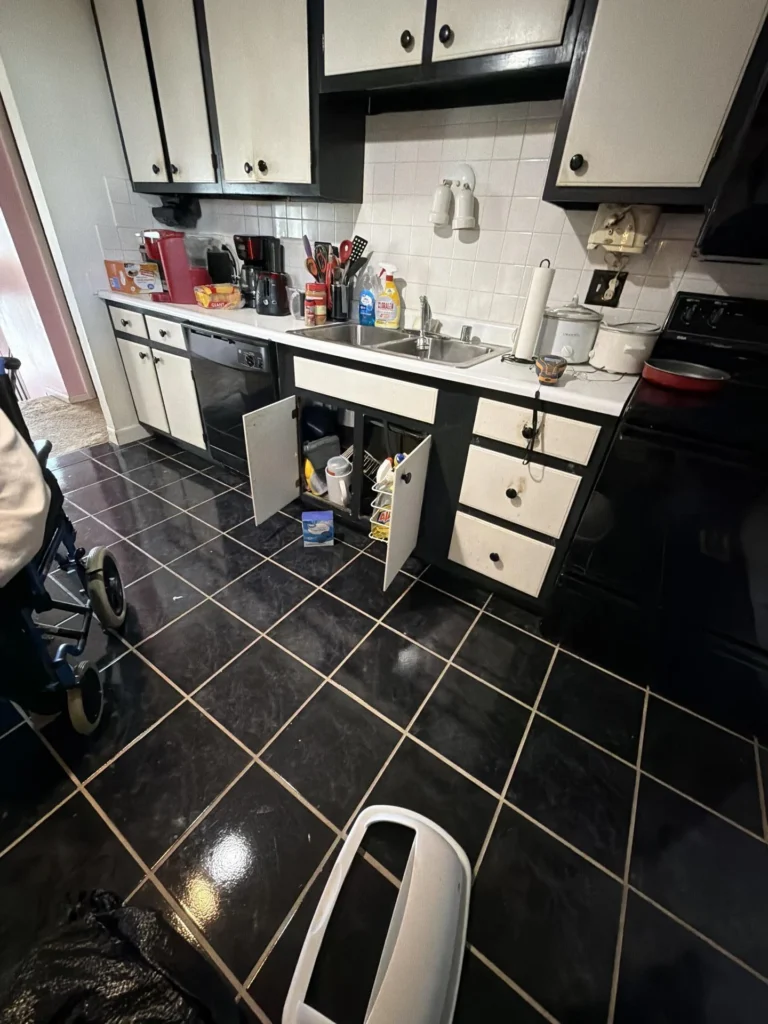

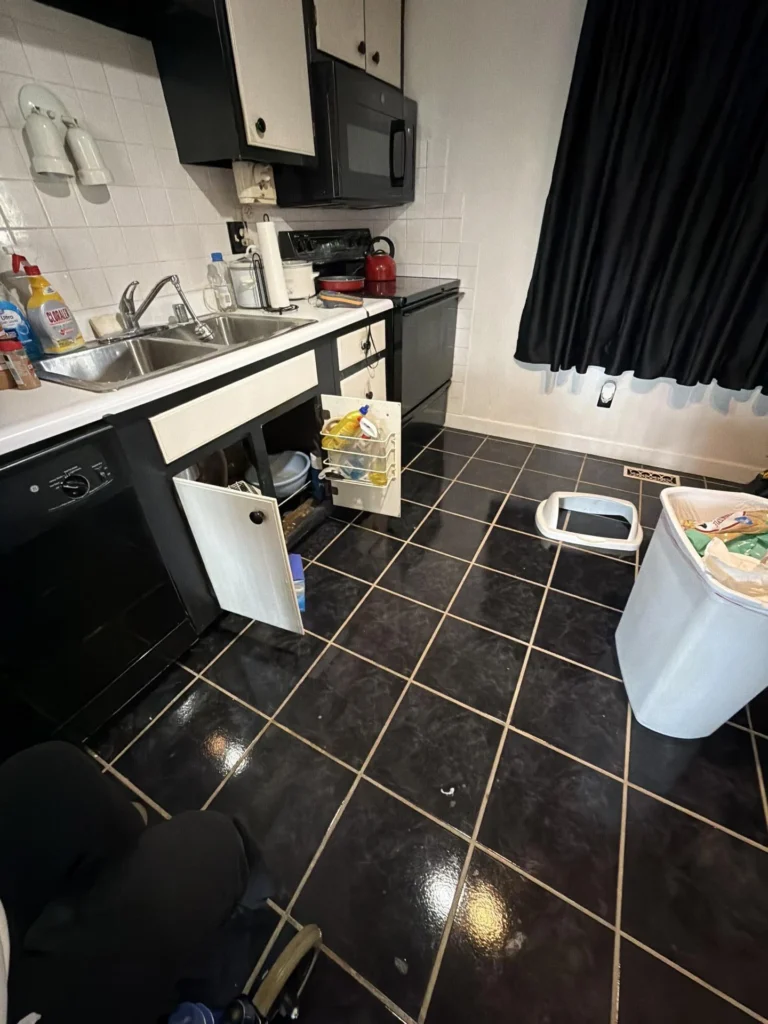

A leak beneath the kitchen sink — originating at the drain assembly and supply connections — allowed water to pool inside the cabinet base and overflow onto the kitchen floor. Standing water was visible across the full kitchen tile surface and had begun migrating under the base cabinets toward the adjacent dining area. A bowl had been placed under the P-trap as a temporary catch, indicating the homeowner had been managing an active drip before calling. The under-sink cavity showed saturated cabinet flooring and long-term moisture staining on the wood. With an open floor plan connecting the kitchen (10'0" × 11'4"), dining area (9'8" × 11'8"), and living room (13'8" × 12'2"), moisture spread quickly across all 452 sq ft before H2O Restoration arrived.
A key finding on this job: water had been actively leaking long enough that a catch bowl was already in place under the drain — meaning moisture had been wicking into the cabinet base and sub-floor well before the emergency call. The open floor plan allowed standing water to migrate into the dining and living areas beyond the initial kitchen footprint.
JOB DETAILS
  • Cause of lossSupply/drain line leak
  • Water categoryCategory 2 (gray water)
  • Total affected area452 sq ft
  • Spaces affected4 — see breakdown
  • Flooring typesCeramic tile
  • Cabinetry affectedYes — base cabinet saturated
  • Insurance supportFull documentation provided
Affected spaces — from floor plan
  • Kitchen10'0" × 11'4"
  • Dining area9'8" × 11'8"
  • Living room13'8" × 12'2"
  • Hall3'11" × 4'1"
  • Total452 sq ft
DRYING EQUIPMENT DEPLOYED
Truck-mount extractor
Portable extraction units
LGR dehumidifiers
Low-profile air movers
Moisture meters
Thermal imaging camera
Cabinet drying system
Thermal hygrometer
JOB SITE IMAGES

A CLOSER LOOK AT THE DAMAGE

Our process

Work completed

1

Emergency response — on site within 59 minutes

Crew arrived to find standing water across the full kitchen floor and an active drip from the under-sink drain assembly. The source was identified and isolated. Moisture readings confirmed water had migrated into the adjacent dining area and toward the living room across all 452 sq ft.

2

Standing water extraction — tile and cabinet base

Truck-mounted and portable extraction units removed standing water from the kitchen floor. The saturated under-sink cabinet base was extracted and assessed for structural damage. Moisture readings mapped the full spread across the open-plan floor.

3

Cabinet drying and sub-floor assessment

A cabinet drying system was deployed inside the base cabinet to draw moisture from the wood framing and floor substrate. Thermal imaging confirmed the extent of moisture beneath the tile surface and into the sub-floor along the dining area migration path.

4

Structural drying across all four spaces

Low-profile air movers and LGR dehumidifiers were positioned throughout the kitchen, dining area, living room, and hallway. Daily moisture readings were logged until all spaces and the cabinet assembly returned to dry standard.

5

Documentation and insurance submission

A complete moisture mapping report with before-and-after readings, photo documentation of the leak source, cabinet damage, and water migration path was compiled. An adjuster-ready scope of work covering all 452 sq ft was submitted to the carrier.

A claim that covered more than it first appeared

The homeowner reported a leaking kitchen sink. Our moisture mapping revealed water had spread across the full 452 sq ft open floor plan — into the dining area and living room well beyond the kitchen. The catch bowl under the drain confirmed the leak had been active for some time, which was documented to support the full cabinet, sub-floor, and multi-room scope under the insurance claim.

five gold star rating icons aligned horizontally
My sink had been dripping for a bit and I didn't realize how much water had gotten under everything. H2O showed up really fast and found that it had spread way past the kitchen. They took care of all of it and dealt with the insurance company so I didn't have to figure that part out on my own. Really glad I called when I did instead of waiting.
D. Washington

Cincinnati, OH  ·  verified Google review
