WATER DAMAGE
RESIDENTIAL
CATEGORY 2

Pipe leak inside the wall saturates Milford, OH

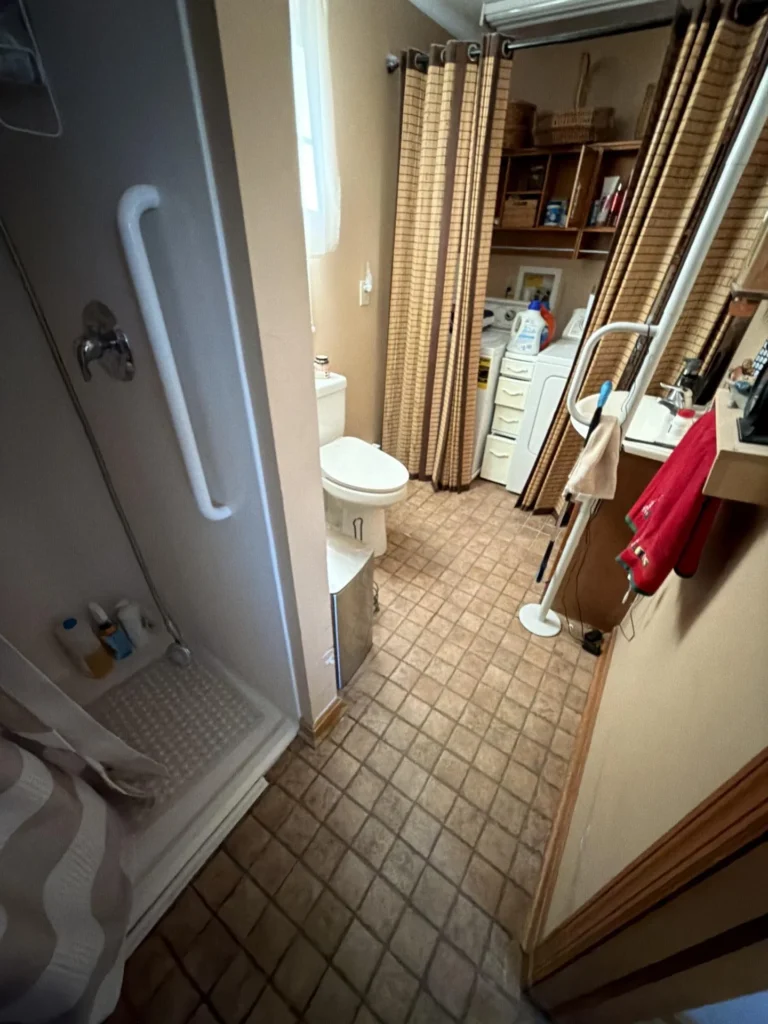

A pipe failure inside the wall of this Milford, OH home sent water into the drywall of a combined bathroom and laundry room — soaking through to the adjacent bedroom wall and wicking into the subfloor. H2O Restoration opened the affected wall to expose the pipe, documented the extent of saturation across both the bathroom and bedroom side, and began structural drying of the wall cavity and floor assembly.
LOCATION
Milford, OH
Total affected area
97 sq ft
CAUSE OF LOSS
Pipe leak — in-wall
RESPONSE TIME
Within 59 minutes
PROJECT OVERVIEW

WHAT HAPPENED

The pipe line failure affected both sides of the shared wall — the bathroom-laundry side and the bedroom side — with moisture wicking into the LVP flooring and subfloor in the bedroom. Documenting the saturation on both sides of the wall at intake was critical to ensuring the bedroom floor assembly was included in the claim alongside the bathroom wall repair.
Active mold was confirmed on the original lath and masonry framing inside both bathroom wall cavities — a sign the moisture had been present for an extended period before discovery. H2O Restoration established HEPA-filtered containment in both spaces, treated all affected structural surfaces with an EPA-registered antimicrobial, and produced a full mold remediation report for the insurance carrier.
JOB DETAILS
  • Cause of lossIn-wall pipe leak
  • Water categoryCategory 2
  • Pipe typeCopper supply + PVC drain
  • Spaces affectedBathroom/laundry + bedroom wall
  • Wall openedYes — both sides
  • Floor affectedLVP + subfloor — bedroom side
  • Contents at riskVanity, shelving, laundry unit, framed art
  • Insurance supportFull documentation provided
Affected spaces — from floor plan
  • Bath / laundryBath / laundry
  • Bath total97 sq ft
  • Shared wall — bedroom sideAssessed + documented
  • Floor type — bathCeramic tile
  • Floor type — bedroomLVP
  • Wall typeDrywall both sides
  • Grab bars presentYes — accessibility-equipped
EQUIPMENT DEPLOYED
LGR dehumidifiers
Low-profile air movers
Pinless moisture meter
Thermal imaging camera
Moisture mapping documentation
JOB SITE IMAGES

A CLOSER LOOK AT THE DAMAGE

Our process

Work completed

1

Assessment — both sides of the shared wall documented

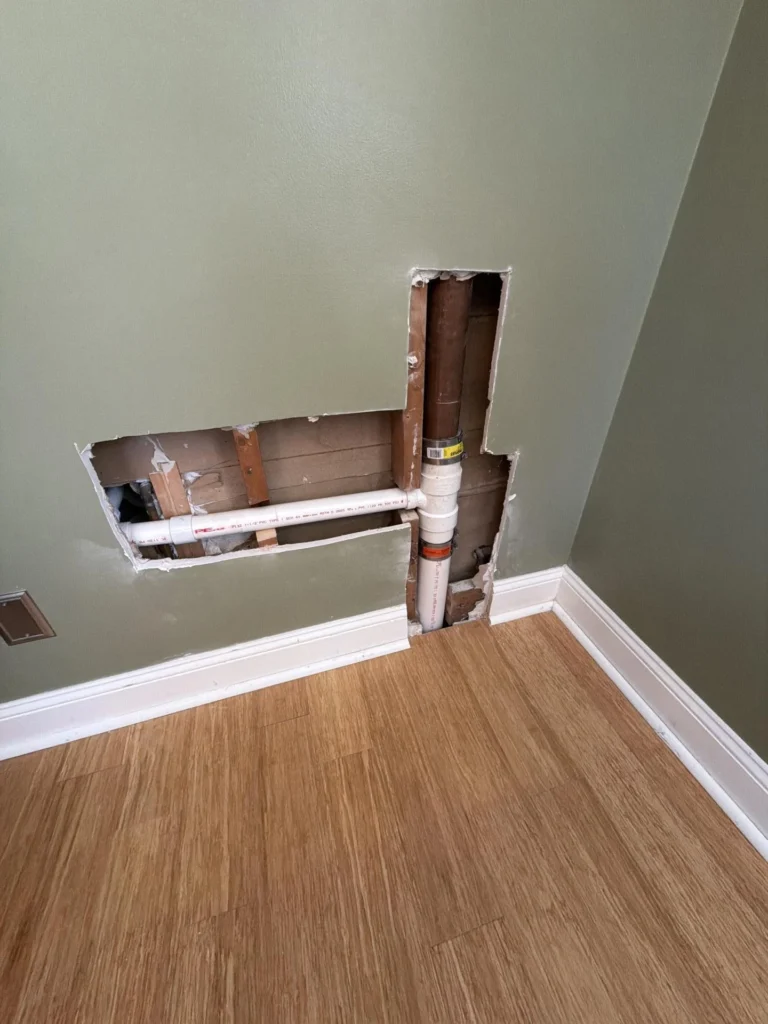

H2O Restoration assessed the bathroom-laundry room from the source side, then moved to the bedroom to document moisture migration through the shared wall. The wall was already partially opened at the pipe location, and tape measure documentation of the pipe height and wall cut dimensions was captured for the insurance claim. Moisture readings were taken on both the bathroom drywall and the bedroom wall and LVP floor to establish the full extent of saturation.

2

Contents protection — bathroom and bedroom contents documented

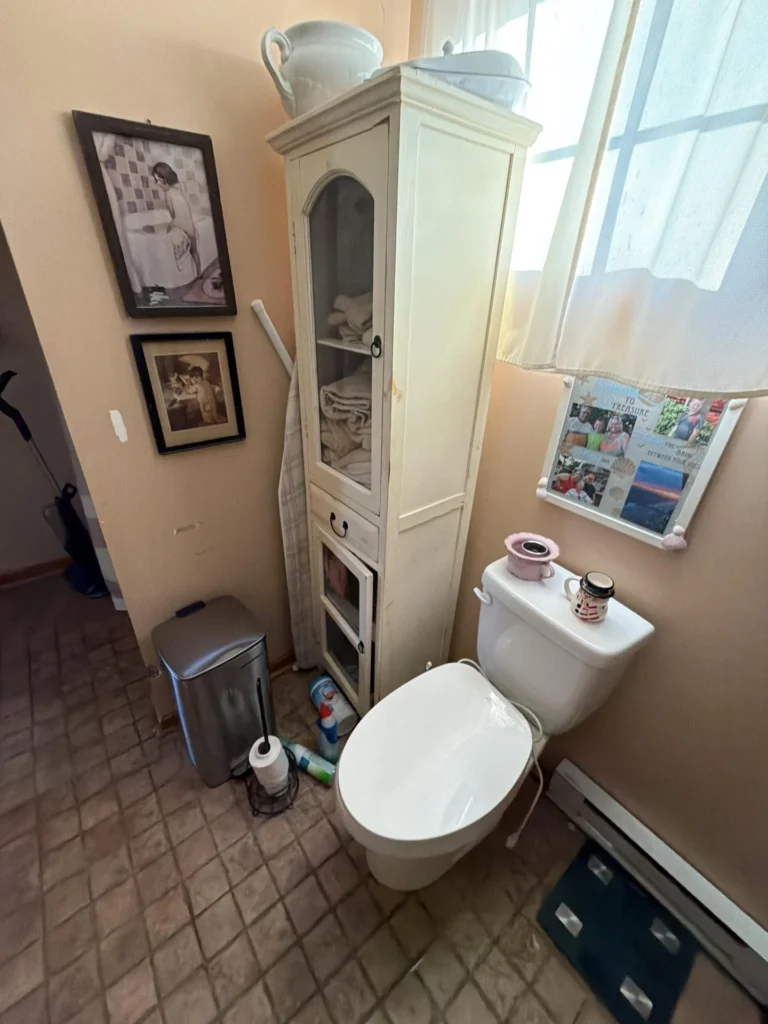

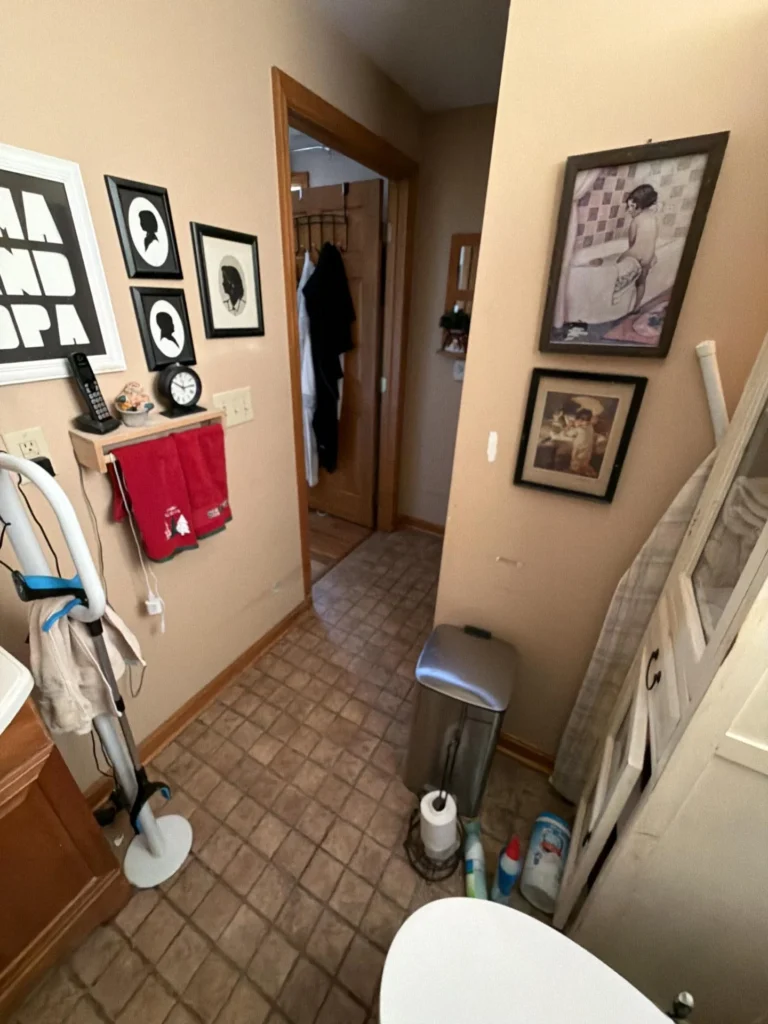

The bathroom contained a wood vanity, open wood shelving loaded with personal items and laundry supplies, a stacked washer-dryer unit, framed artwork, and personal memorabilia — all documented and photographed before drying equipment was positioned. On the bedroom side, framed art, personal items near the baseboard, and the LVP flooring were assessed and documented as part of the loss.

3

Wall cavity drying — both sides of the shared wall treated

Air movers were positioned at the open wall cut on the bathroom side to push airflow directly into the cavity and across the exposed framing and insulation. On the bedroom side, air movers were directed at the base of the wall where moisture had migrated down into the LVP and subfloor. The shared wall assembly was dried from both sides simultaneously to prevent moisture from pooling in the cavity between the two rooms.

4

Floor assembly drying — bedroom LVP and subfloor targeted

The LVP flooring on the bedroom side had absorbed moisture at the base of the wall where it met the wet framing. Low-profile air movers were run along the wall-floor junction to dry the subfloor from above while dehumidification pulled moisture from the room. Daily readings were logged at the floor surface and wall base until the assembly reached dry standard.

5

Insurance documentation — pipe location, wall cut measurements, and both-sides scope

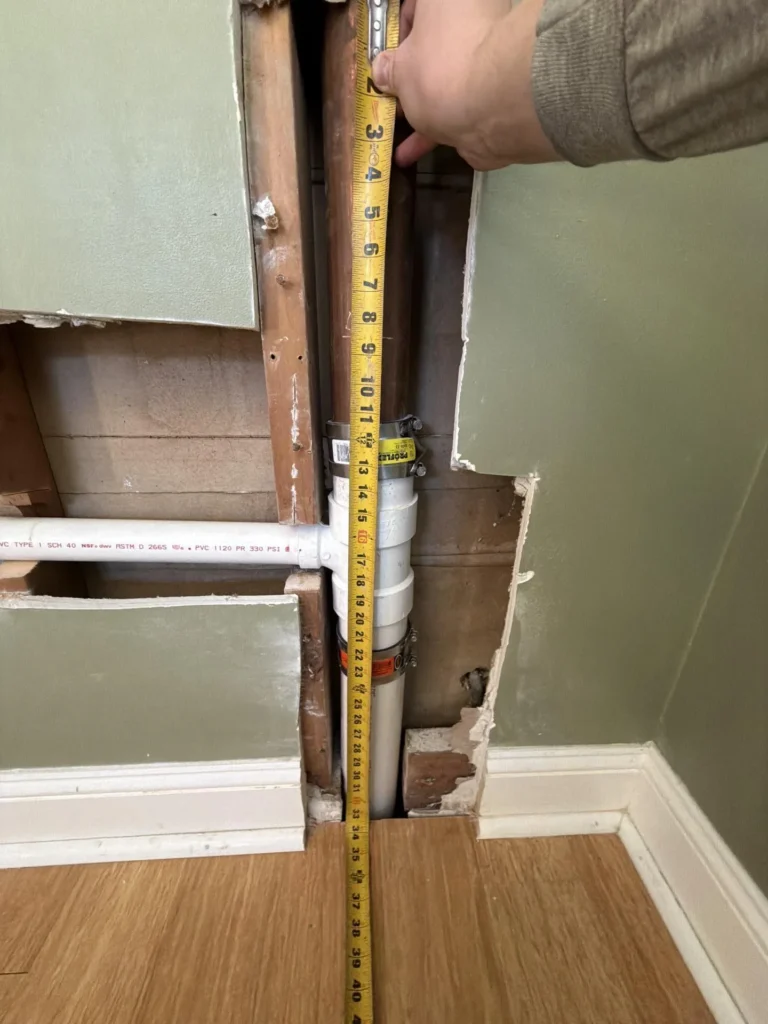

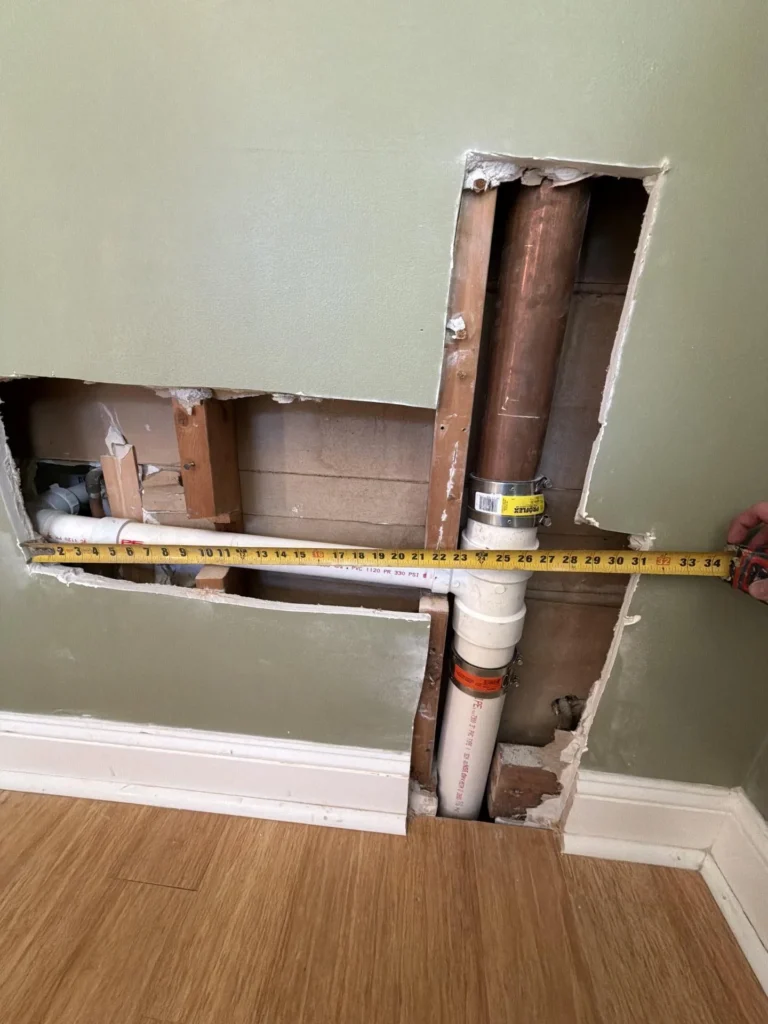

Tape measure documentation of the pipe height and wall cut was photographed to establish the scope of the plumbing repair needed alongside the water damage work. A complete moisture mapping report covering the bathroom and bedroom side was compiled and submitted to the carrier, ensuring both the wall repair and the bedroom floor assembly were included in the claim.

H2O Restoration handles both mitigation and full reconstruction — including drywall repair, LVP flooring replacement, paint, and plumbing coordination — so you work with one team from the first call through the final walkthrough.

The bedroom floor was part of the loss too

The visible damage on arrival was a wet wall in the bathroom. Assessing the bedroom side of the shared wall revealed that moisture had migrated through the framing and into the LVP and subfloor — adding the bedroom floor assembly to the documented scope. Without that documentation at intake, the bedroom flooring would have been left out of the claim entirely. The tape measure wall cut photos and both-sides moisture mapping ensured the full scope was supported under the policy.

five gold star rating icons aligned horizontally
"We knew we had a leak in the wall but had no idea it had gotten into the bedroom floor too. They checked both sides, showed us exactly what was going on, and made sure the whole thing was in the insurance claim. Took care of the whole process and we didn't have to figure any of it out ourselves."
P. Greer

Milford, OH — verified Google review
