WATER DAMAGE
RESIDENTIAL
CATEGORY 1
Water Intrusion Saturates Cincinnati, OH
Sustained moisture intrusion at this Cincinnati multi-unit property on Downing Drive compromised a 205 ft² upper hall and bath, a 743 ft² main residential unit, and a 269 ft² detached garage — 1,217 square feet across three floor plans. Moisture meter readings reached a peak of 601 at interior wall framing, with ceiling drywall failures, saturated door frames, and extensive organic staining documented throughout the garage structure. H2O Restoration mobilized equipment across all three units simultaneously.
LOCATION
Cincinnati, OH
Total Affected Area
1,217 sq ft
CAUSE OF LOSS
Water Intrusion
RESPONSE TIME
Within 59 Minutes
PROJECT OVERVIEW
WHAT HAPPENED

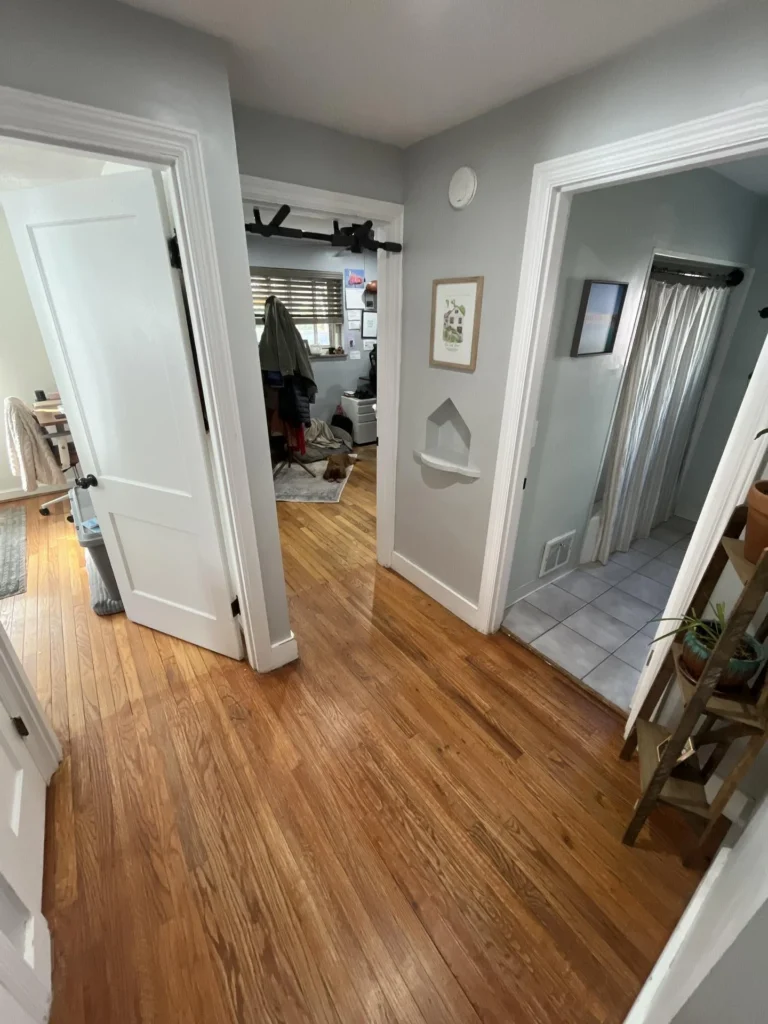

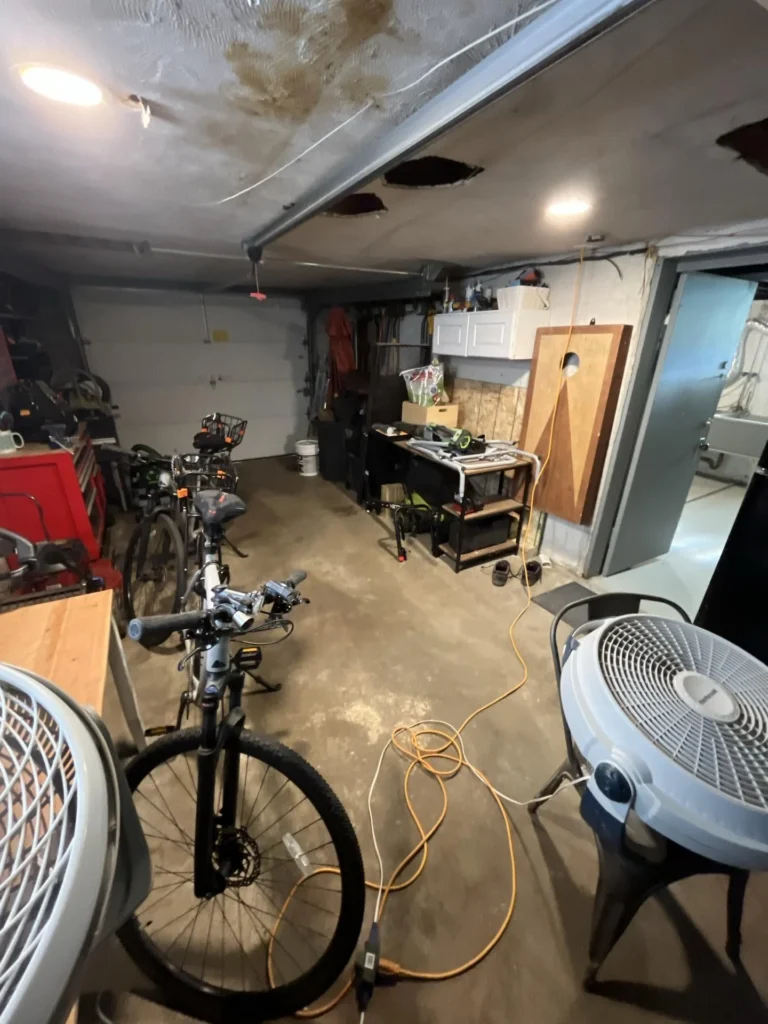

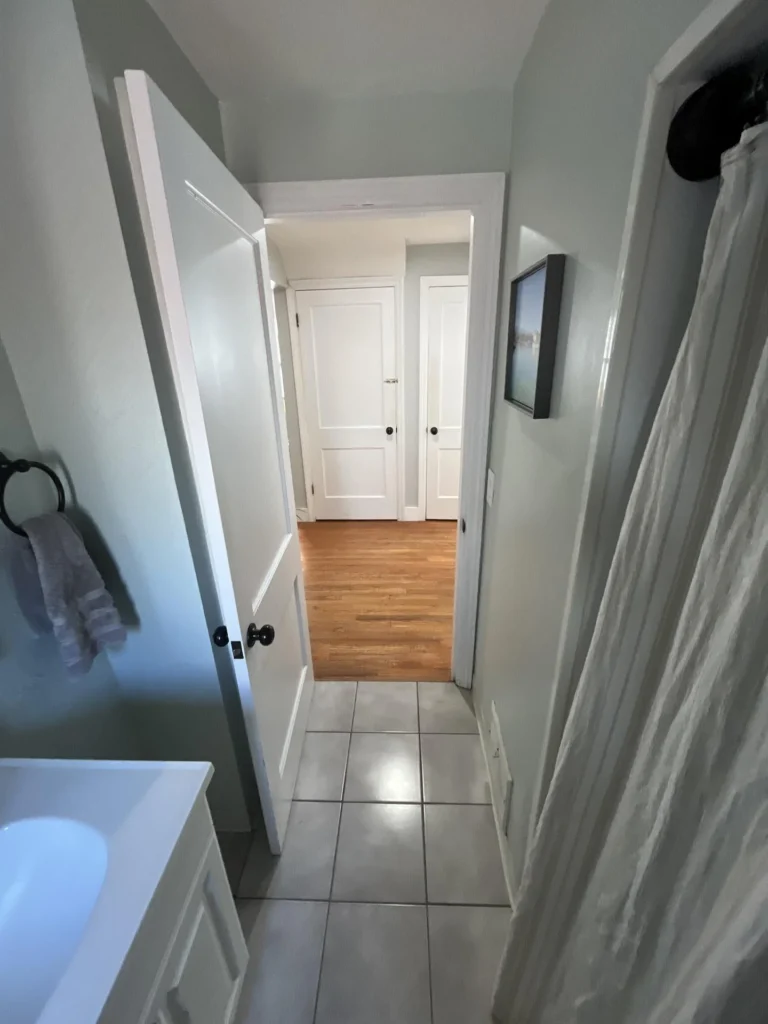

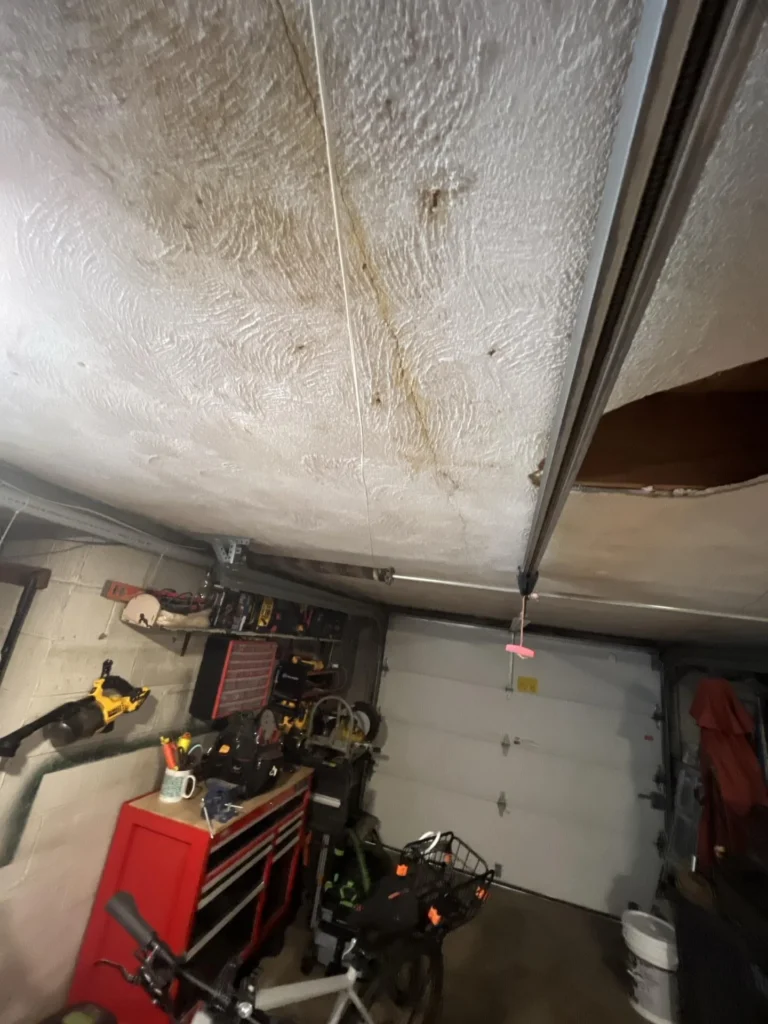

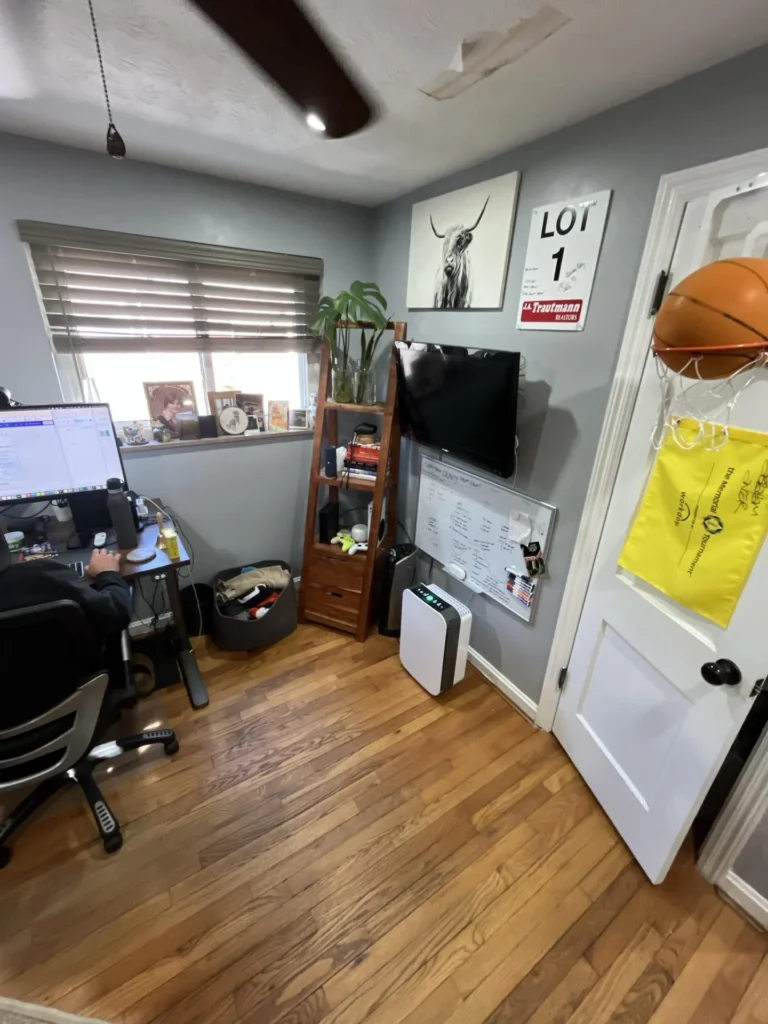

Water intrusion entered the Harvey Court property through multiple pathways — migrating from compromised pipe penetrations in the utility closet, through the ceiling assembly above the garage, and into the finished living areas of the main residential unit — reaching hardwood floors in the hallway, saturating drywall at door frames and interior walls, and producing widespread brownish organic staining across the full garage ceiling field; exploratory cutouts confirmed active moisture in the framing above, the home office ceiling showed a prior event that had been cosmetically patched but never fully dried, HVAC flue collars and PVC drain lines had failed foam sealant, and a CSST gas line pass-through in the garage ceiling was found completely unsealed — a direct air and moisture corridor between levels, with two industrial fans already running on-site before H2O's crew arrived.

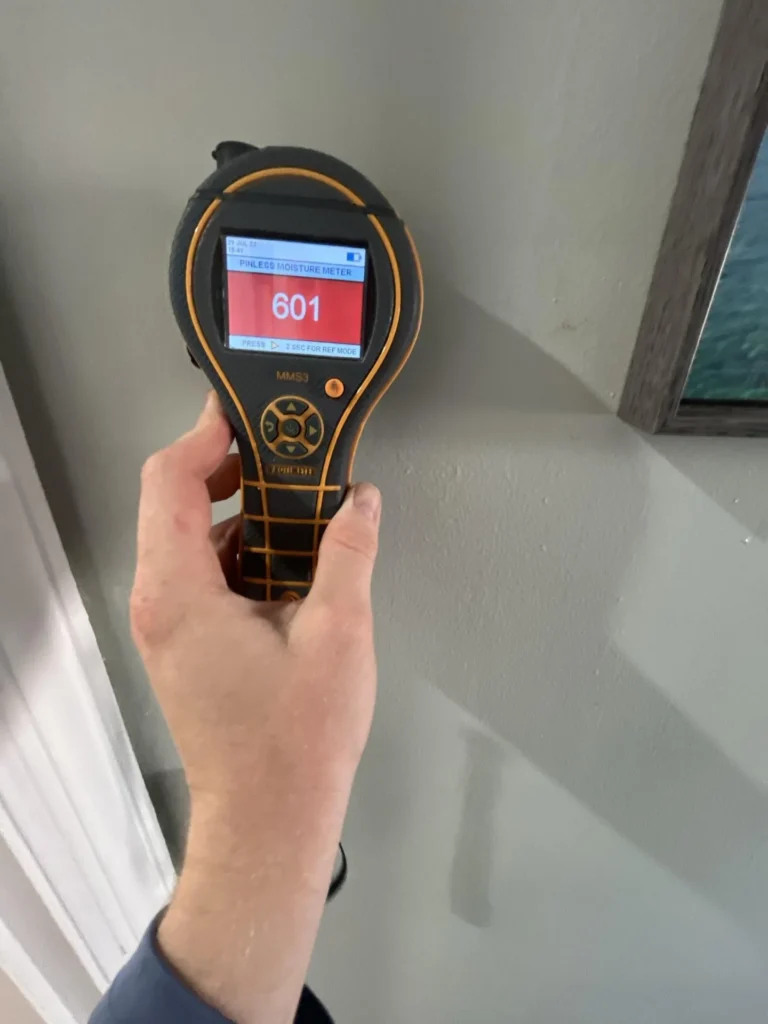

Moisture had migrated from the utility closet pipe penetrations into the wall cavities of the main unit, with door-frame readings of 601 confirming deep saturation well beyond the visible damage footprint. The scope of required remediation extended significantly beyond what surface observation alone would have indicated.
JOB DETAILS
- Cause of loss
- Water category
- Total affected area
- Units affected
- Peak moisture reading
- Flooring affected
- Ceiling damage
- Insurance support
Affected Spaces — From Floor Plans
- Hall (FP 1)

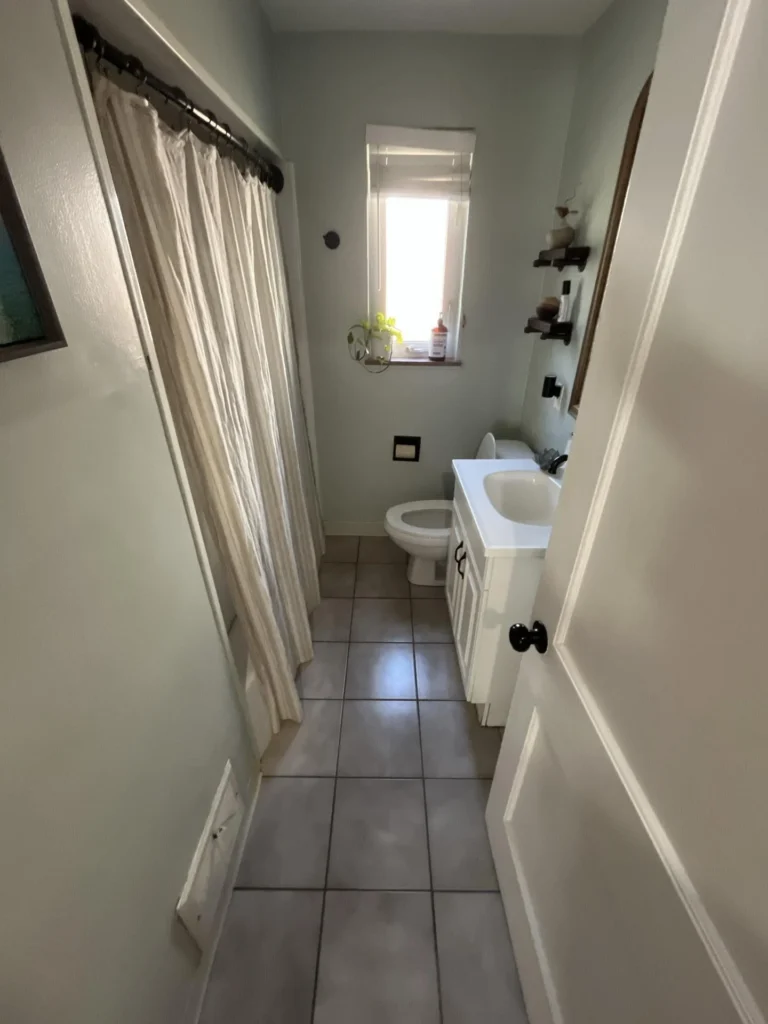

- Bath (FP 1)
- Bedroom (FP 2)
- Bath (FP 2)
- Kitchen (FP 2)
- Dining Area (FP 2)
- Living Room (FP 2)
- Hall (FP 2)
- Garage (FP 3)
- Total
EQUIPMENT DEPLOYED
High-volume air movers
LGR dehumidifiers
Protimeter MMS3 moisture meters
Industrial floor fans
Thermal imaging camera
HEPA air scrubbers
Antimicrobial treatment
Thermal hygrometer
JOB SITE IMAGES
A CLOSER LOOK AT THE DAMAGE
Our process
Work completed
1
Emergency response — on site within 59 minutes Emergency response — on site within 59 minutes

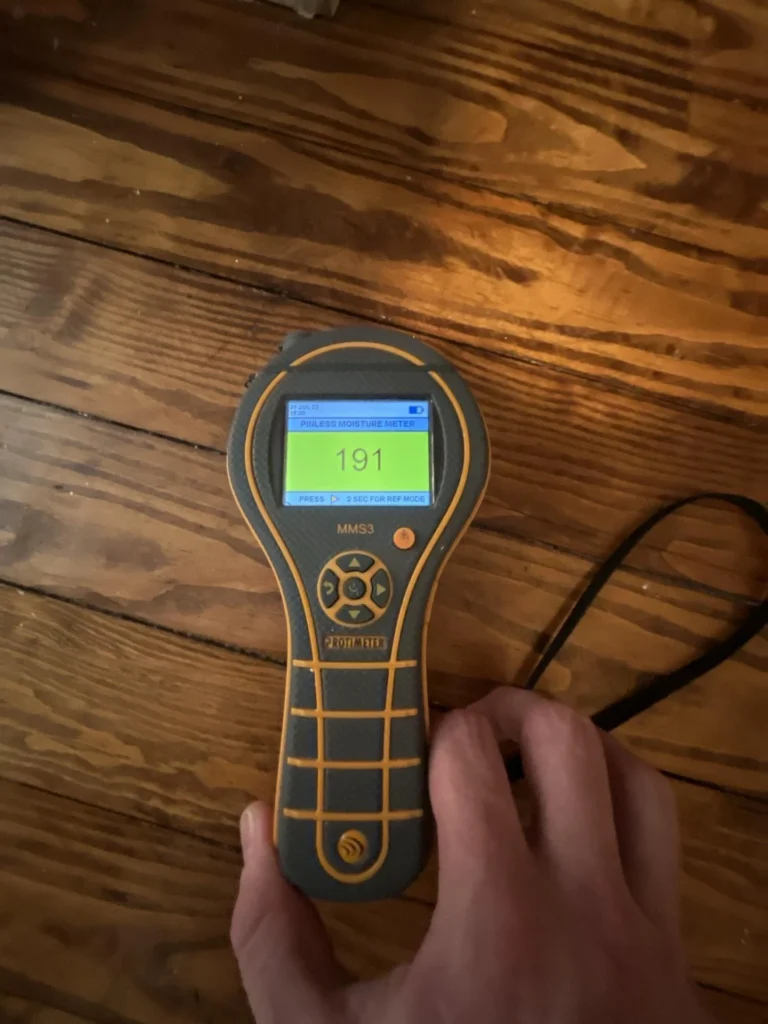

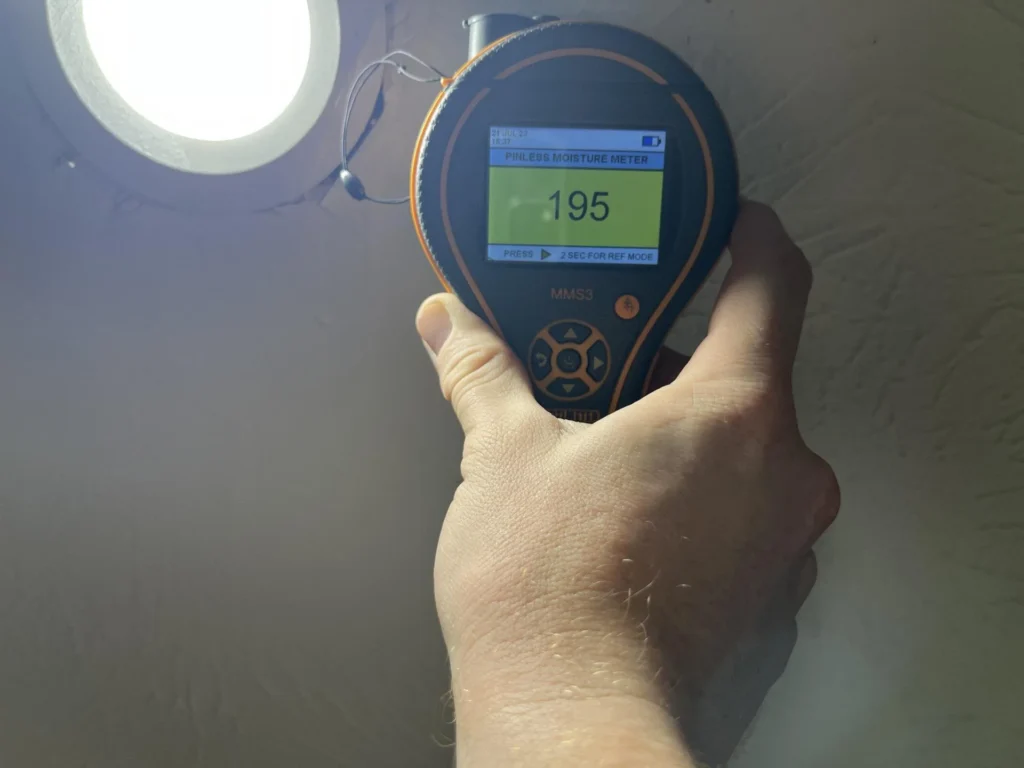

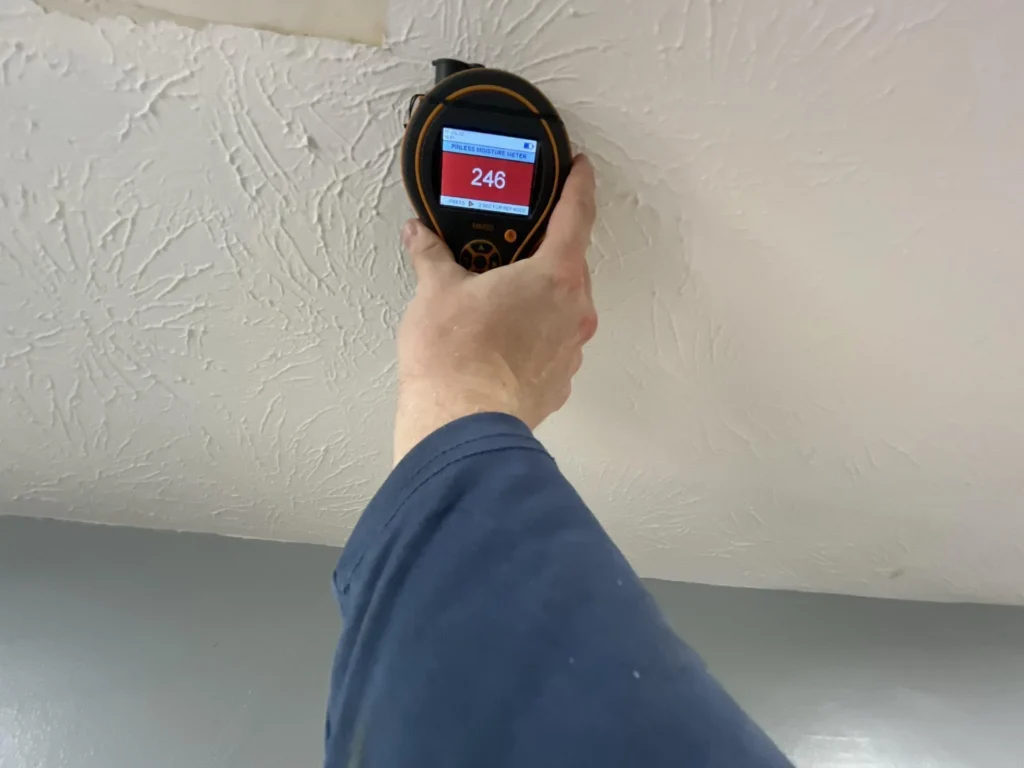

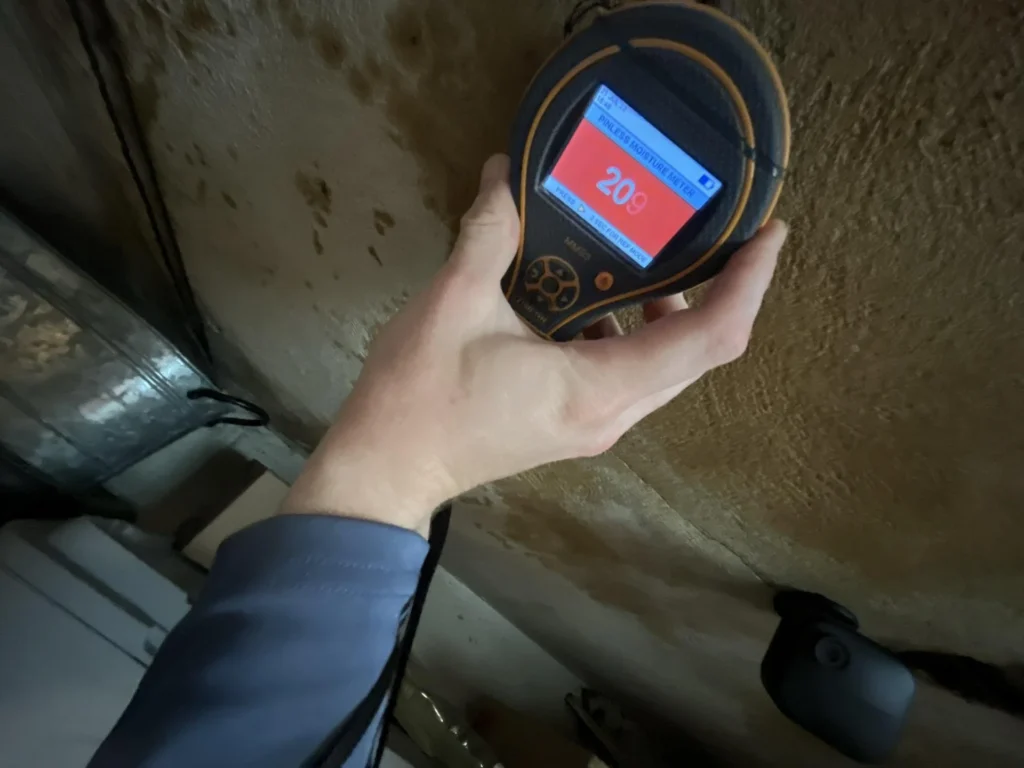

Crew arrived to find moisture-compromised ceilings across all three units. The utility closet and garage showed the most severe conditions. Moisture readings were taken at all surfaces — confirming that water had migrated well beyond visible damage into wall cavities, door frames, and framing above the garage ceiling plane.
2
Source identification and containment

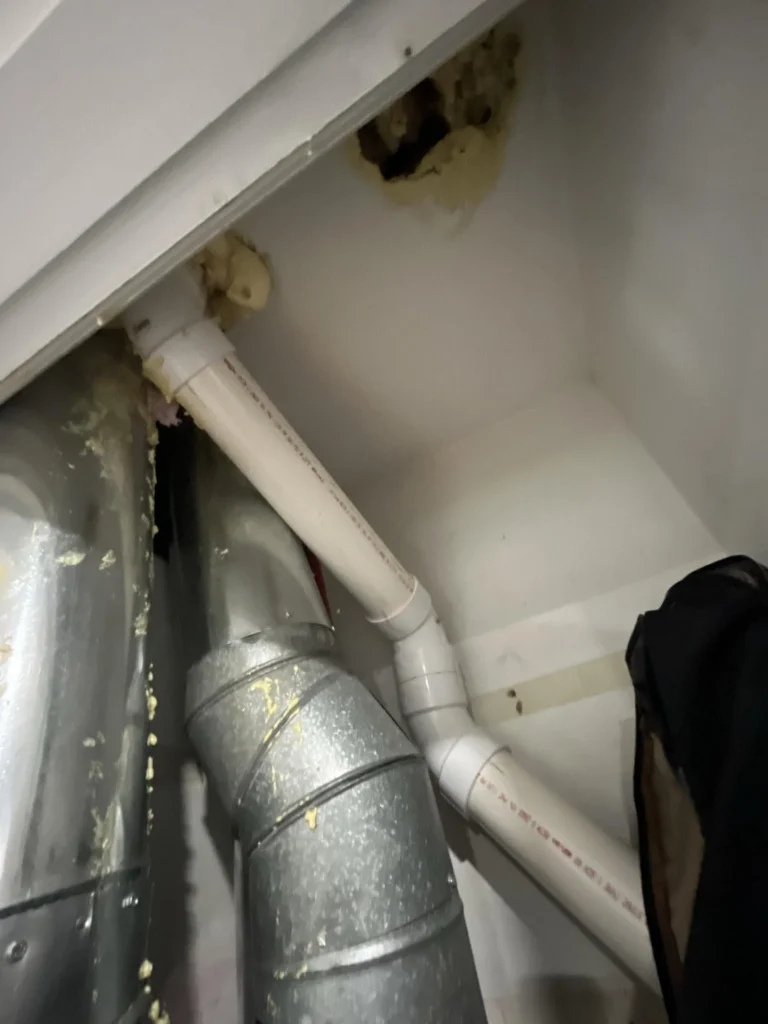

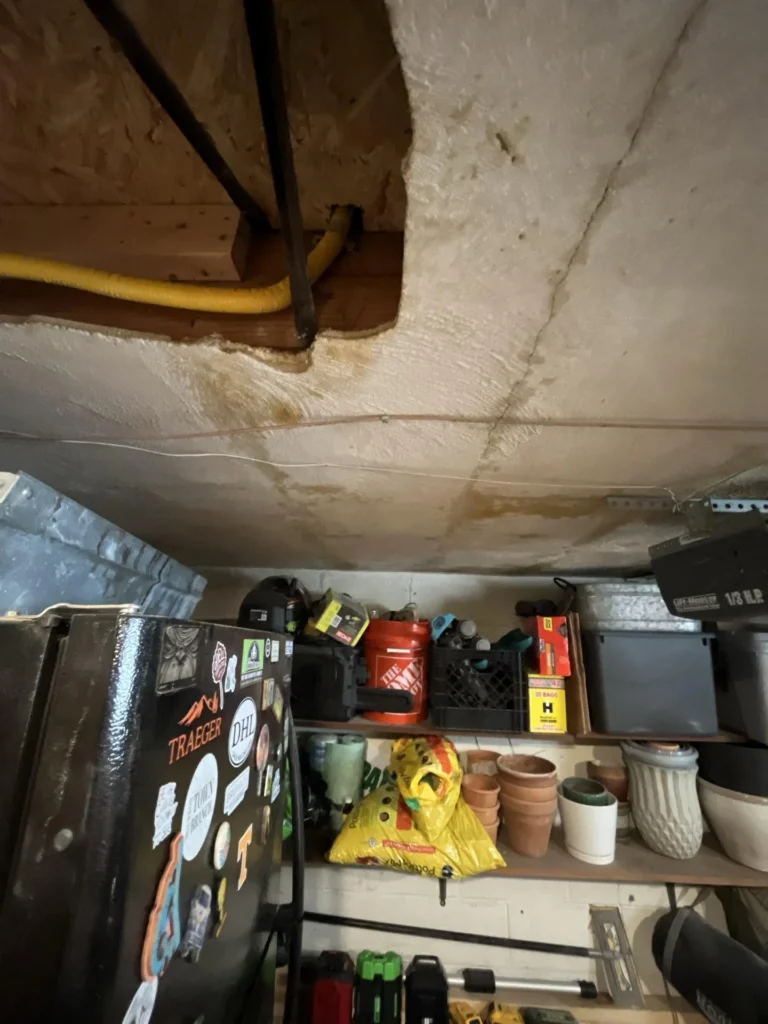

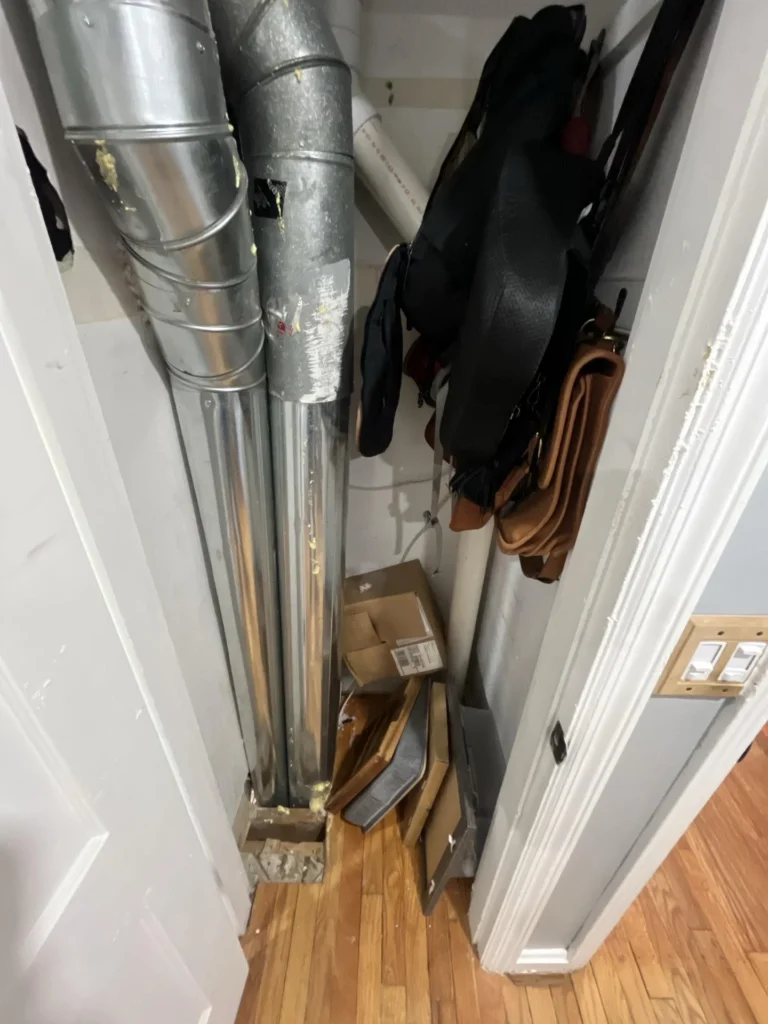

The utility closet pipe penetrations were identified as a primary moisture pathway — HVAC flue collars and PVC drain lines had failed foam sealant, allowing water to travel between floors. The CSST gas line pass-through in the garage ceiling was documented as an unsealed air and moisture corridor. Source was contained prior to drying operations beginning.
3
Structural drying across all three units
High-volume air movers and LGR dehumidifiers were distributed across Floor Plan 1 (hall/bath), all rooms in Floor Plan 2 (main unit), and the garage. Industrial fans already on-site were supplemented with additional equipment. Daily moisture readings were logged until all surfaces returned to dry standard.
4
Contents assessment and daily monitoring documentation
Contents at risk in the garage — shelving, tools, stored items — were inventoried and documented. Items in contact with moisture-affected surfaces were photographed and catalogued for the insurance claim. A complete moisture mapping report with before-and-after readings was compiled for the carrier at each daily check.
5
Remediation — ceiling removal and antimicrobial treatment

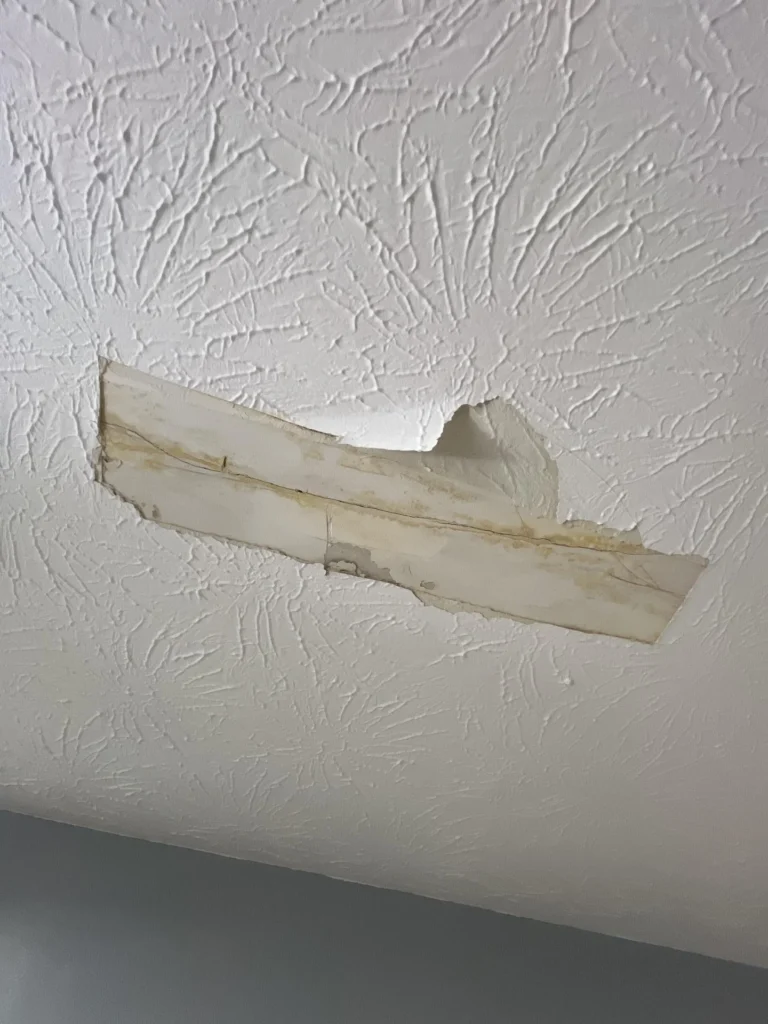

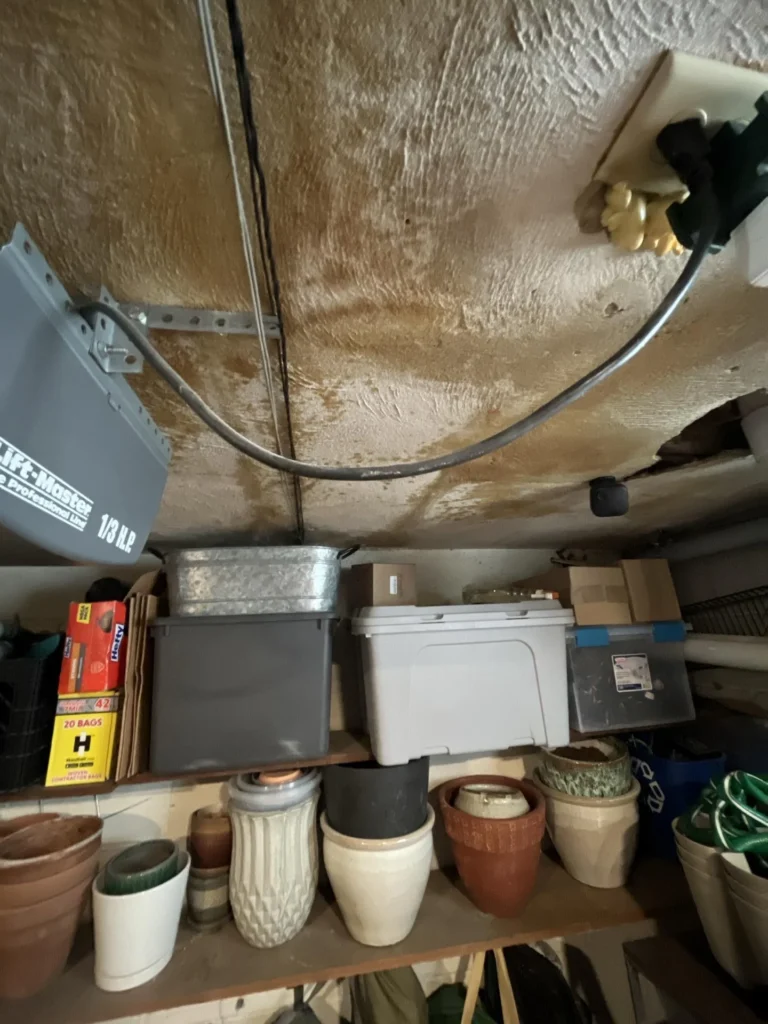

Delaminated and stained ceiling drywall was removed from all affected areas. The garage ceiling field showing organic growth was taken down to expose framing. HEPA vacuuming and antimicrobial treatment were applied to all exposed structural members. All pipe penetrations were resealed with fire-rated foam. Clearance testing was completed prior to reconstruction.
6
Reconstruction and final moisture verification
New 5/8" drywall was installed across all affected ceiling planes. Texture was matched to the existing finish throughout all three units. Door casing and trim in the main unit hall were restored. A final moisture scan was conducted across all units before project close-out to confirm readings had returned to acceptable dry standard.
H2O Restoration handles both mitigation and full reconstruction — including ceiling replacement, drywall repair, texture matching, and trim restoration — so you work with one team from the first call through the final walkthrough.
